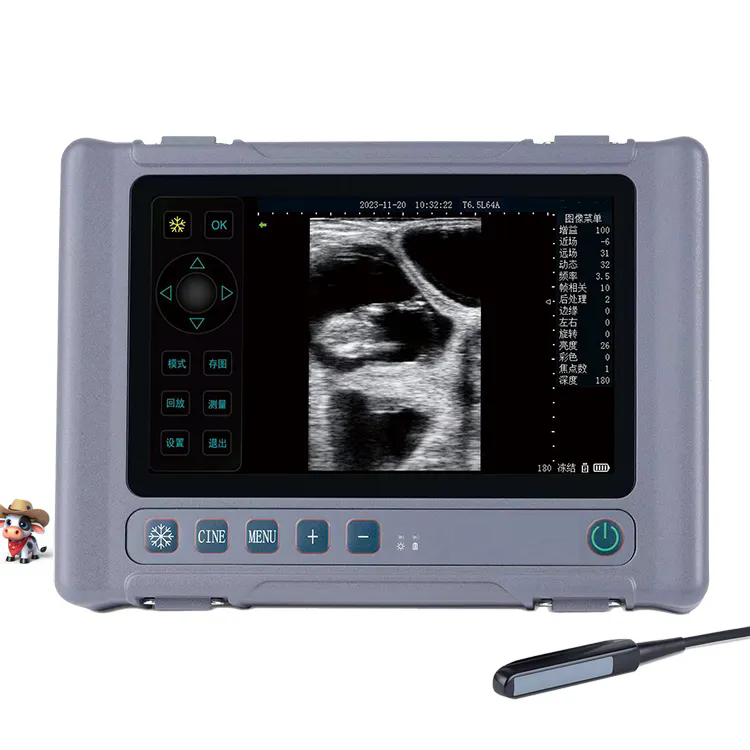

MT1 Handheld Horse/Cattle Ultrasound Scanner

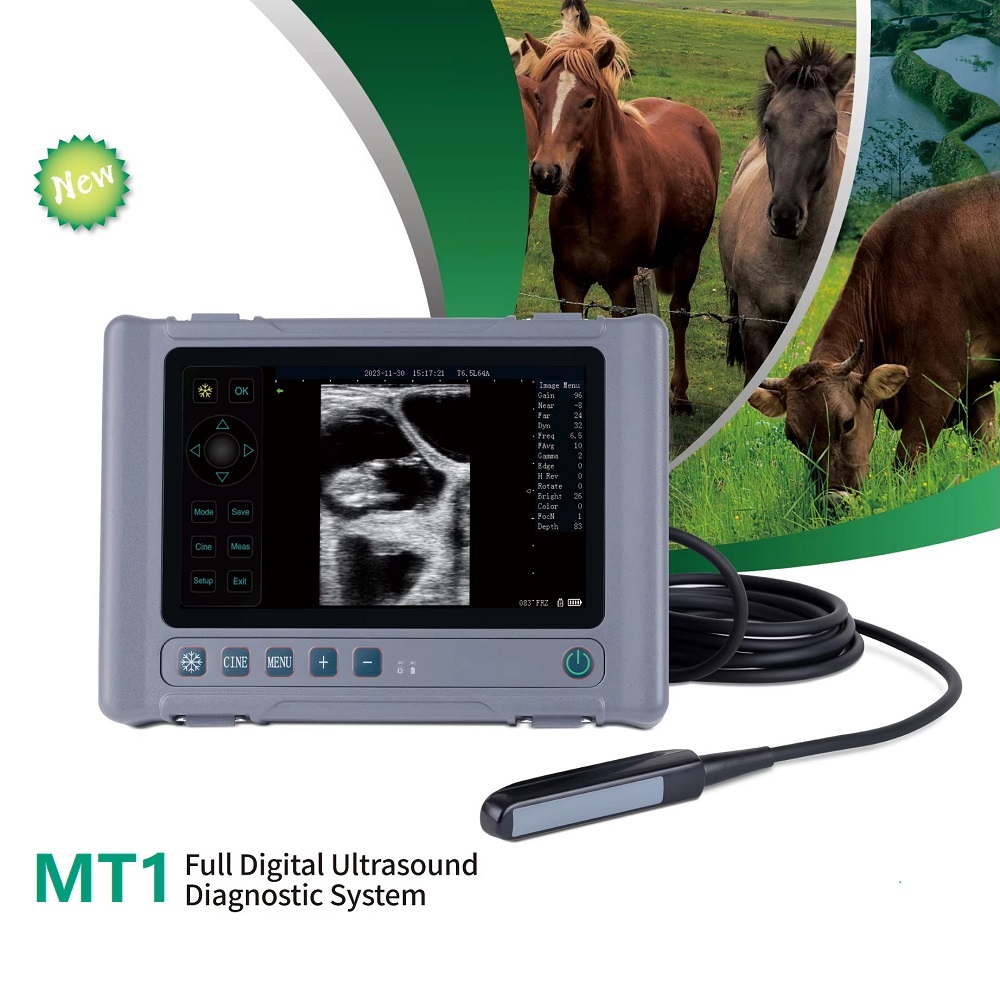

MT1 Handheld Horse/Cattle Ultrasound Scanner with Linear Rectal Probe

I. Product parameters:

1, the whole machine is waterproof, dustproof, can be directly washed with water, easy to disinfect and clean;

2, full Chinese touch keys, easy to operate and easy to get started;

3, internal and external dual screen, explosion-proof and scratch-proof;

4, display: ultra-high definition 8-inch large LCD medical display 800 * 480 resolution, wide viewing angle, 120 ° can be observed normally, high brightness screen, outdoor can be viewed normally;

4, the entire screen contains touch buttons can be flipped, convenient for left and right hand operation;

5, support probe: support probe: 3.5MHz abdominal convex array probe, 6.5MHz micro-convex small animal probe, 6.5MHz line array large animal rectal probe, 4.0MHz convex array large animal rectal probe, 7.5MHz high-frequency line array probe, 3.5MHz backfat probe;

6, with automatic backfat function (intelligent one-key measurement), fast backfat function (mobile reading scale), manual measurement of backfat function;.

6, display mode: B, B + B, 4B, B + M, M.

7, Frequency conversion: any probe has five frequency conversion function.

8、Electronic focus: four-segment electronic focus;

9、Variable frequency: any probe has five-segment variable frequency function;

10, image mirroring: up and down, left and right rotating mirror, the interface can be black and white flip;

11, with image rotation function, the image can be up and down left and right flip;

12, position markers: ≥ 18 kinds; in addition to the annotation function, convenient text and body labeling;

13, routine measurements: distance, perimeter, area, volume, angle;

14, specialty measurements: 8 kinds of animal obstetrics measurements as well as heart measurements, lean body mass measurements;

15, with grid scale and point scale function, can quickly read the size of the detection target

16, character display: gain, frequency, dynamic, date, time;

17, with 256 frames of movie playback function, frame by frame playback and video playback, frame by frame playback can be selected from any image measurement notes saved and other functions;

18, storage: optional 32G memory card, external U disk storage, can natively browse the picture, can be built-in picture transfer to the U disk;

19, dynamic range: 0-135dB;

20, image processing: γ correction (0-7), frame-related (0-3), line-related (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo-color processing;

21、Blind Zone: ≤4

22, Maximum display depth: 3.5MHz: 270mm 6.5MHz: 189mm 7.5MHz: 165mm;

24, Interface: USB interface, HDMI HD interface, TF interface, power supply interface;

25, Geometric accuracy: horizontal ≤ 5%, vertical ≤ 5%

26, Resolution: lateral ≤ 2mm, axial ≤ 1mm

27, Display multiplier: 16 display modes;

28, gain range: 0 ~ 100dB;

29, near-field adjustment range: -31 ~ 0;

30, far field adjustment range: 0 ~ 31;

31, with time and date, video output, TV system, key tone switch, parameter mode, standby protection, multi-language selection, customized pregnancy week and other settings;

32, battery power indication, U disk indication, prompt message display;

33, built-in 10000 mAh battery, normal operation can be close to 10 hours;
