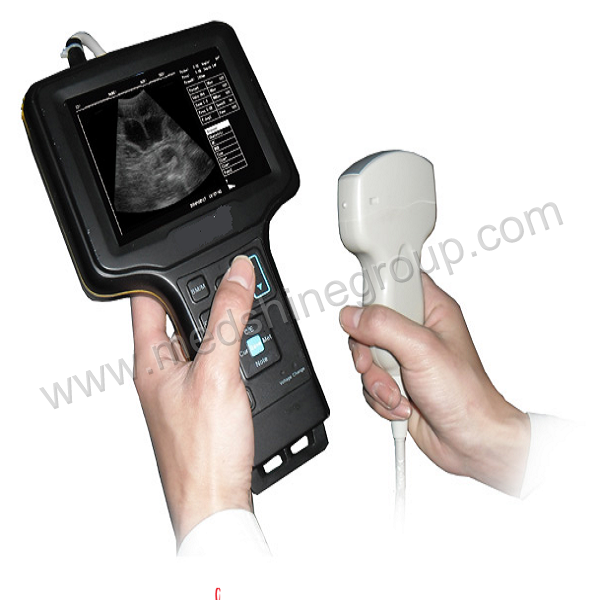

M230 Handheld Veterinary Ultrasound Scanner

M230 Handle Veterinary Ultrasound Scanner

Feature:

-5.6 inch TFT screen

-Pretty and very light

-Full digital imaging technology, crystal-clear Image

-Simple and convention on operation

-Low power consumption

-8G Large volume storage image

-Built-in battery

-Solid shell and structure

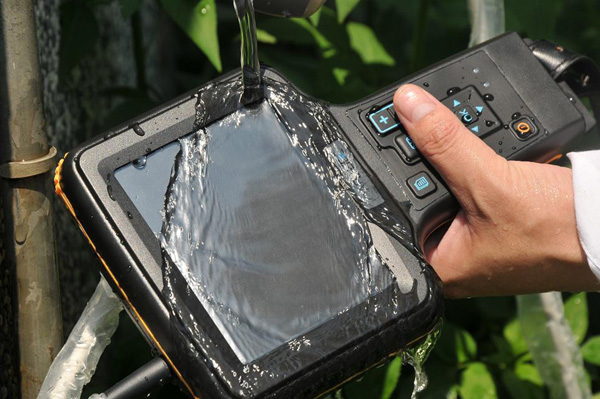

-Waterproof

-Low cost

Specifications:

-Display screen: 5.6" TFT colr screen

-Scanning manner: Electronic convex array, electronic linear array

-Working frequency: 2.0MHz~10MHz

-Display mode: B, B+B

-Scanning range: Convex array 60°~150°

-Amplification factor：1.0, 1.2, 1.5,2.0

-Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,

 digital filtering, digital edge enhancement and pseudo color processing, etc

-Conventional measurements: distance, perimeter, area, volume

-Obstetric measurement: horses, cattle, sheep, dogs, cats obstetric measurement

-Image gray-scale: 256 levels

-Scanning line number: 512 lines/frame

-Frame rate: 30 frames/second

-Digital scanning conversion: 512×512×8 bits

-Battery capacity: 3000mAH/7.4V,can work more than 2 hours

-Memory capacity: 8GB, can optional to 32GB

-Report function: auto make report

-Output interface: USB port, video.

-Overall size: 225mm*145mm*25mm

-Weight: 900g(with battery)

-Waterproof: IP65

Standard Configuration:

Host, convex probe, built-in battery,

power adapter, bag.

Optional:

Extra battery; Larger storage;

Can customized to with linear probe, Micro-convex probe, Rectal probe, Backfat probe.
