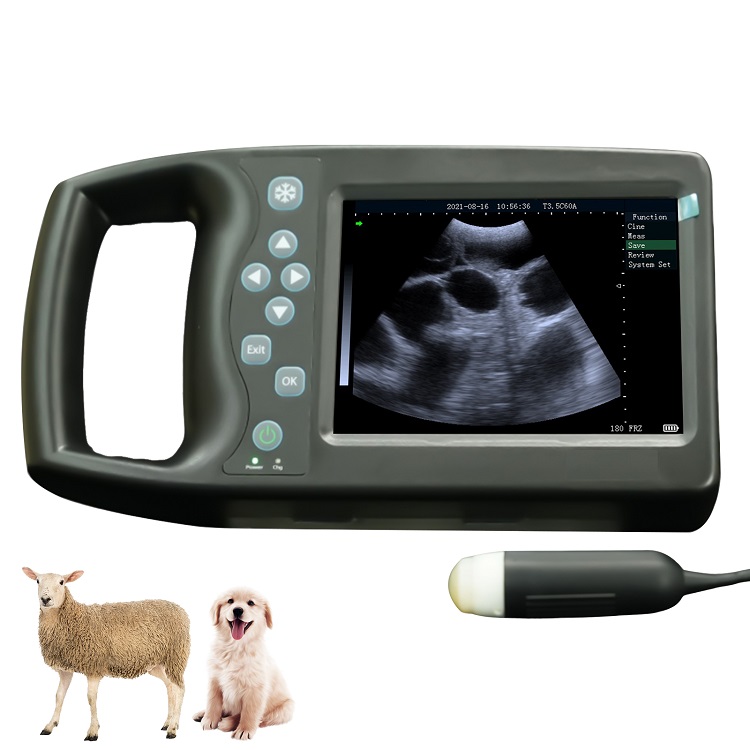

M234 Handheld Veterinary Ultrasound Scanner - 副本

M234 Mechanical Fan Scan Ultrasonic Diagnostic Instrument

1.Display: 5.7-inch high resolution display;

2.Scanning mode: 3.5m mechanical fan scanning;

3.Video playback: 256 frames, playback image after detection, convenient for single person video recording;

4.Preheat function: one button preheat function in winter, no need to worry about the probe freezing;

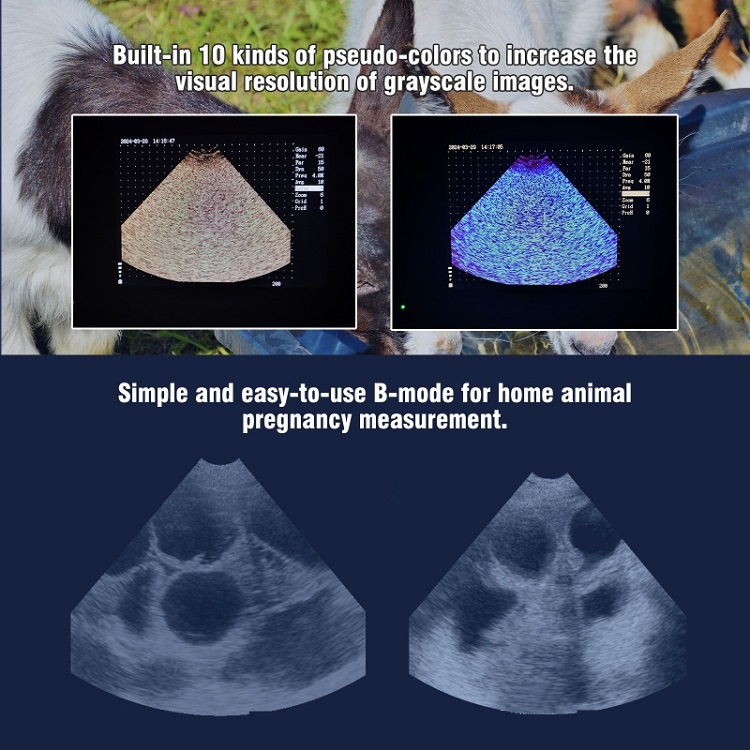

5.10 kinds of color adjustable;

6.Four section frequency conversion: 2.0MHZ, 2.5MHz, 3.5MHz, 5.0mhz;

7.Grid: 0, 1, 2 three modes (point grid, mesh grid), point adjustable distance, easy to quickly read the measurement target size;

8.Routine measurement: distance, perimeter, area, volume and angle;

9.Ergonomic handle design, small radian, more comfortable to hold;

10.Operation interface: through up and down keys to select parameters, left and right keys to adjust size, macro layout, humanized design, easier to operate;

11.Storage: 127 pictures can be stored permanently;

12.Dynamic range: 0-135db;

13.Frame correlation: 0-15 step by step;

14.The maximum display depth is 270mm;:

15.Interface: USB interface, video output interface, power interface, probe interface;

16.Gain range: 0-100db;

17.Near field adjustment range: - 31 ~ 0;

18.Far field adjustment range: 0 ~ 31;

19.character brightness 0-255 can be adjusted step by step; character color 16 kinds can be adjusted

20.Energy saving setting: 0-120 minutes can be adjusted step by step, set the number of minutes in the specified time without operation, automatic power off;

21.With time and date, key tone switch, standby protection, multi language selection, etc;

22.Large capacity lithium battery, imported 18650 standard cell, can work for about 5 hours;

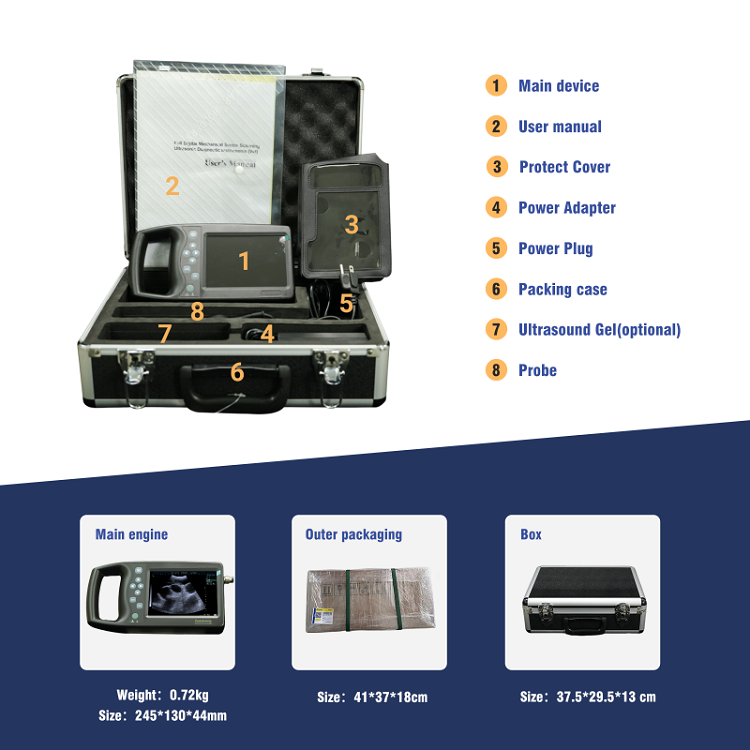

23.Host size: 245x130x44mm (length x width x height);

24.Main engine weight: 720g;
