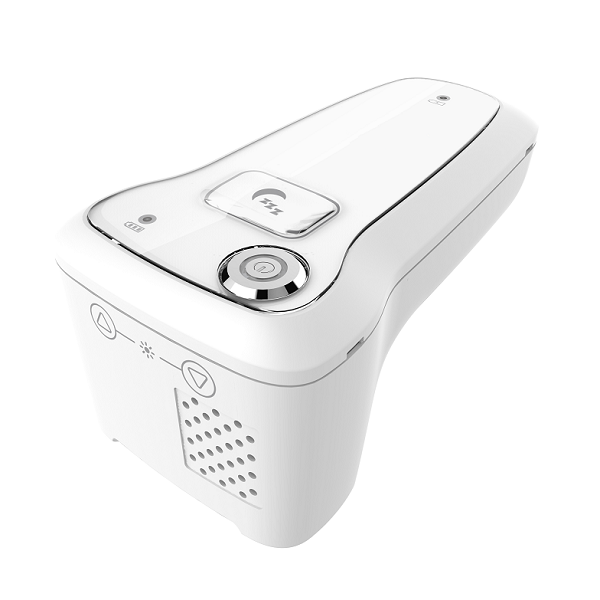

M891 Vein Finder

M891 Vein Finder

Application

It is used in hospital,Pediatric clinic, emergency room, outpatient transfusion room, community medical institutions, hospitals, emergency center, blood center, physical examination center, the CDC, the rehabilitation center,the nursing homes and so on to find subcutaneous veins.

Operating Principle

Handheld portable infrared vein finder acquires image of subcutaneous veins, the image which  results from  dealing with image signal is projected onto the surface of the skin. Thus, subcutaneous vein image will be displayed on the skin surface of the corresponding position.

Technical Parameter

Effective positive projection distance: 25cm～35cm

Light projection: 300lux～1000lux

Active radiation contains wavelength light: 750nm～980nm

Electrical source: lithium ion polymer batteries

Service voltage: d.c. 3.0V～4.2V

Main Part Net weight: 0.28±0.02kg, Whole Set Gross weight is about 1.2kg

Prevent into the liquid level: IPX0

Detailed Characteristics

1) Handheld, non-contact vein finder used in venipuncture, for displaying veins beneath the surface

2) Use safe infrared light source and strong light source both, no laser, no radiation

3) 3 different colors image clear and accurate,each color has 4 levels light strength

4) No patient contact, no need to be sterilized after every use

5) Easy to learn and use, just turn it on to display the veins beneath the skin

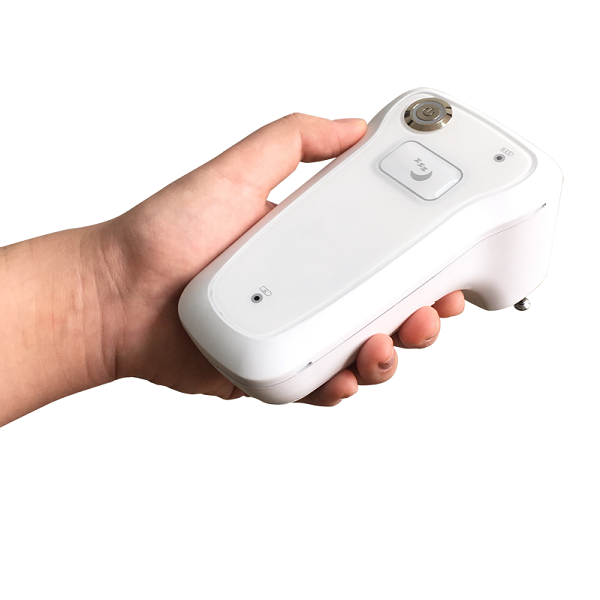

6) Small size, it fits in your hand for convenient use

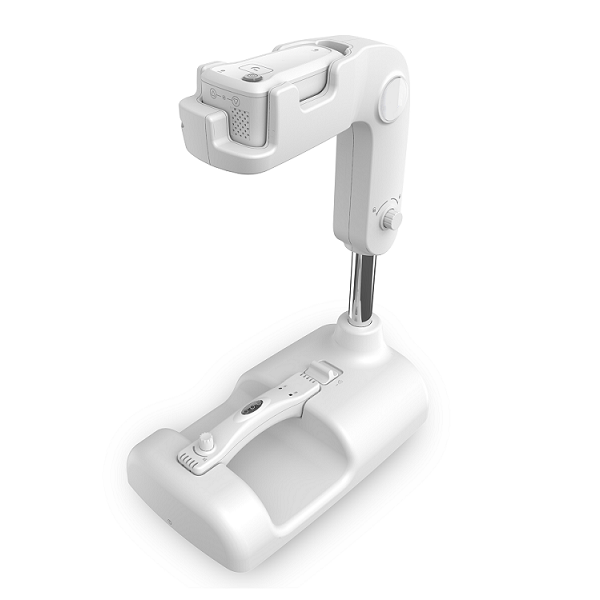

7) Hands-free option, can be converted from hand held to hands-free quickly and easily

8) Usual Rechargeable 18650 Lithium battery,  can get on markets easily and can be taken out.

9) Works in light or dark lit environments

10) With Sleeping mode to save energy

11) much small package to save shipping cost
