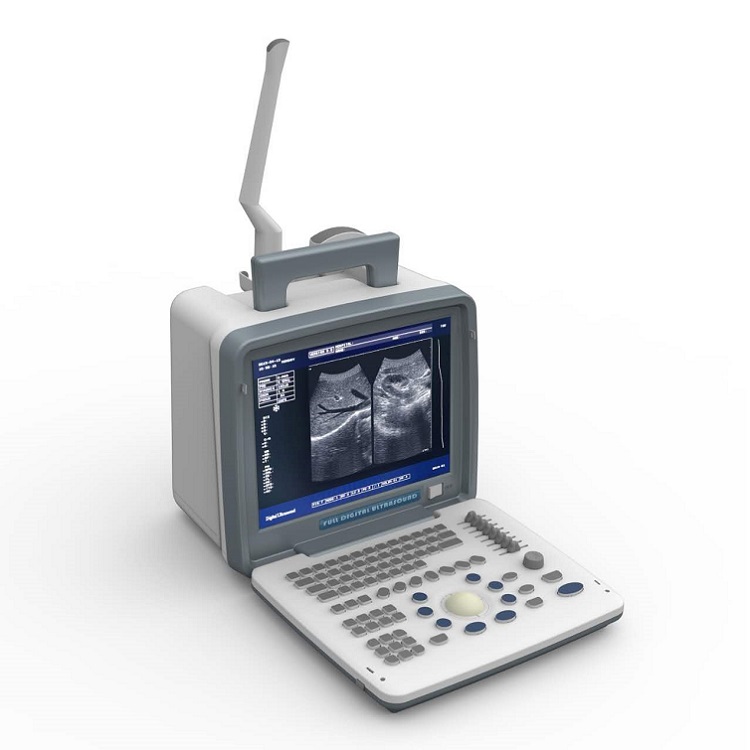

M212 Portable Ultrasound Scanner

M212 LED Portable Ultrasound Scanner

-Display Modes:

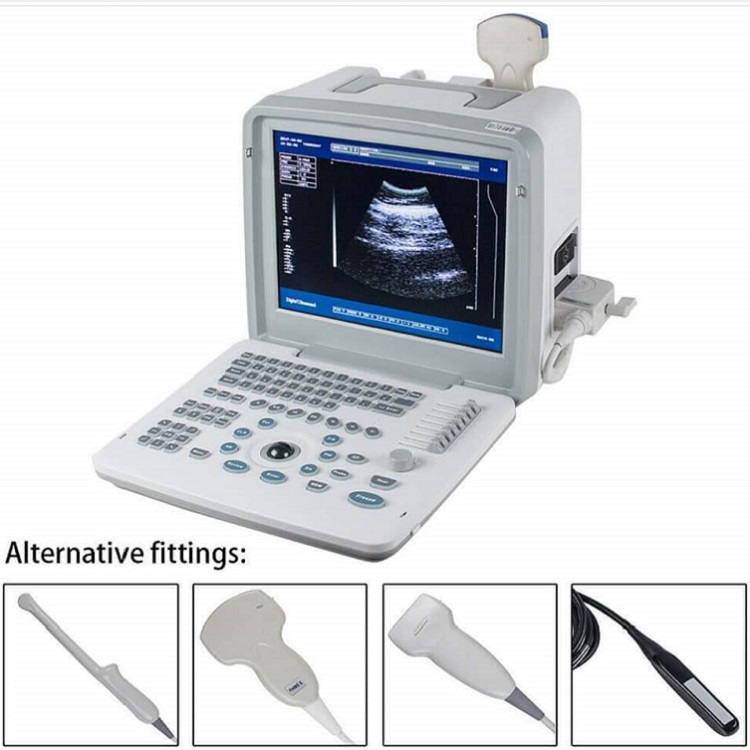

3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M

5 MHz/R20 Dimpling array probe:B

6.5MHz/R13 Dimpling array probe:B

7.5 MHz/L40 Line array probe:B

-Image Multiplying Factor:

3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0 ( 6modes)x0.8, x2.0 (display penetration depth)

6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)

7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)

-E-zoom:magnify 2 times of real time image

-Dynamic Range:0~120dB ajustable

-Focus Position:1,2,3 and 4-segments dynamic electron focusing

-Image Processing: γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.

-Frequency Conversion:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion

frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe

-Measuring Function:Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.

-Annotation Function:hospital name, patient’s name, age and gender 64 body marks (with probe’s position);Full-screen character annotation; Real-time clock display

-Puncture Guide:3.5MHz convex array probe can display puncture guide line in B mode

-Gain Control:8 segments TGC and overall gain can be adjusted respectively

-Image Polarity:left and right flip, black and white flip, up and down flip

-Capacity Cine Loop: real time display 256 consecutive images which are memorized successively

-Image Playback:series playback or check one by one

-Permanent Storage:128 images

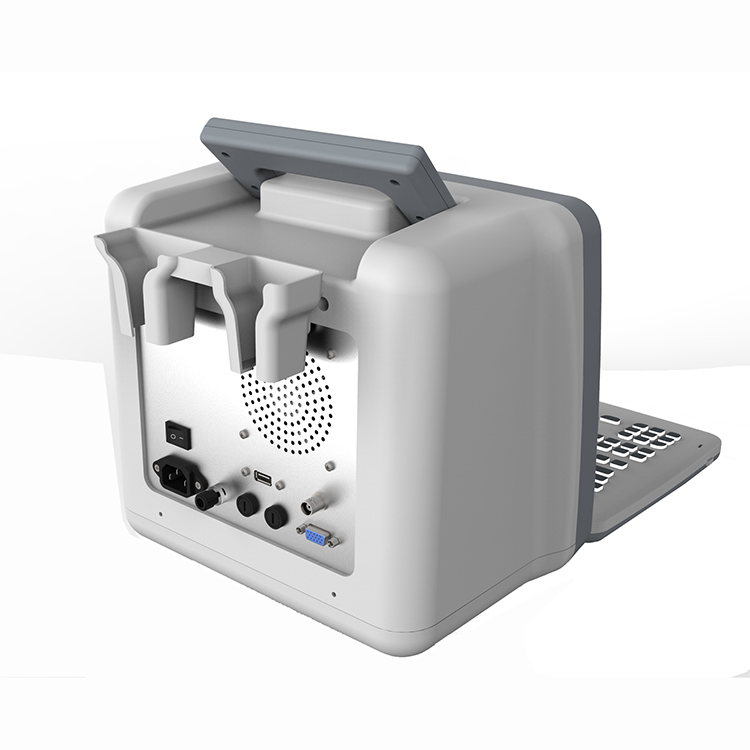

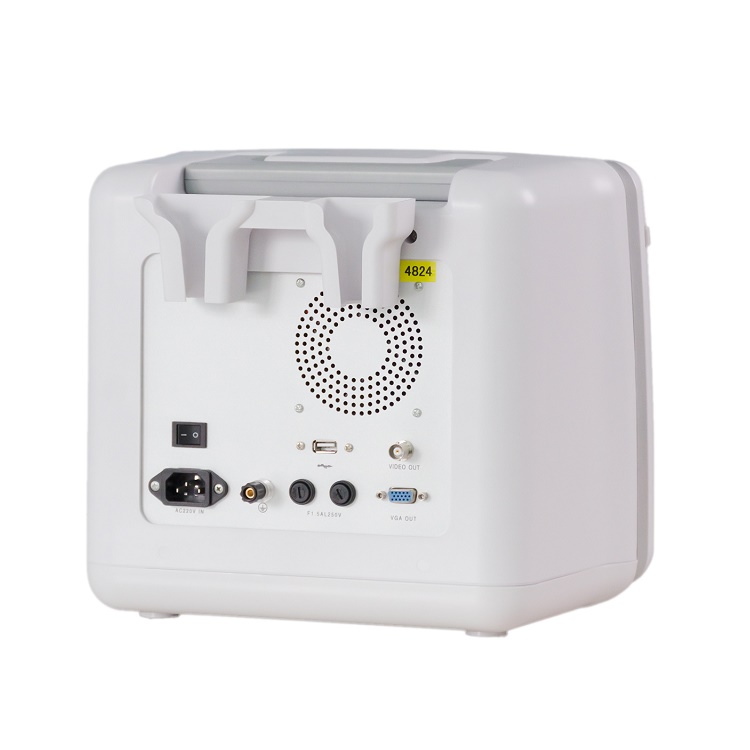

-Output Interface:VGA video output offers connection to SVGA color display PAL video output offers connection to PAL display and printer video image recorder and image workstation, etc

-USB Port:Offers storing images in USB flash disk

Features:

1. Mass memory , cine loop and permanent storage.

2. Radium Caved buttons and Silicon backlit buttons to be chosen;

3. Intelligent fluorescence trackball.

4. 8-segment TGC control. Overall Gain control

5. 2 USB ports , Upgraded and expandable printer function;

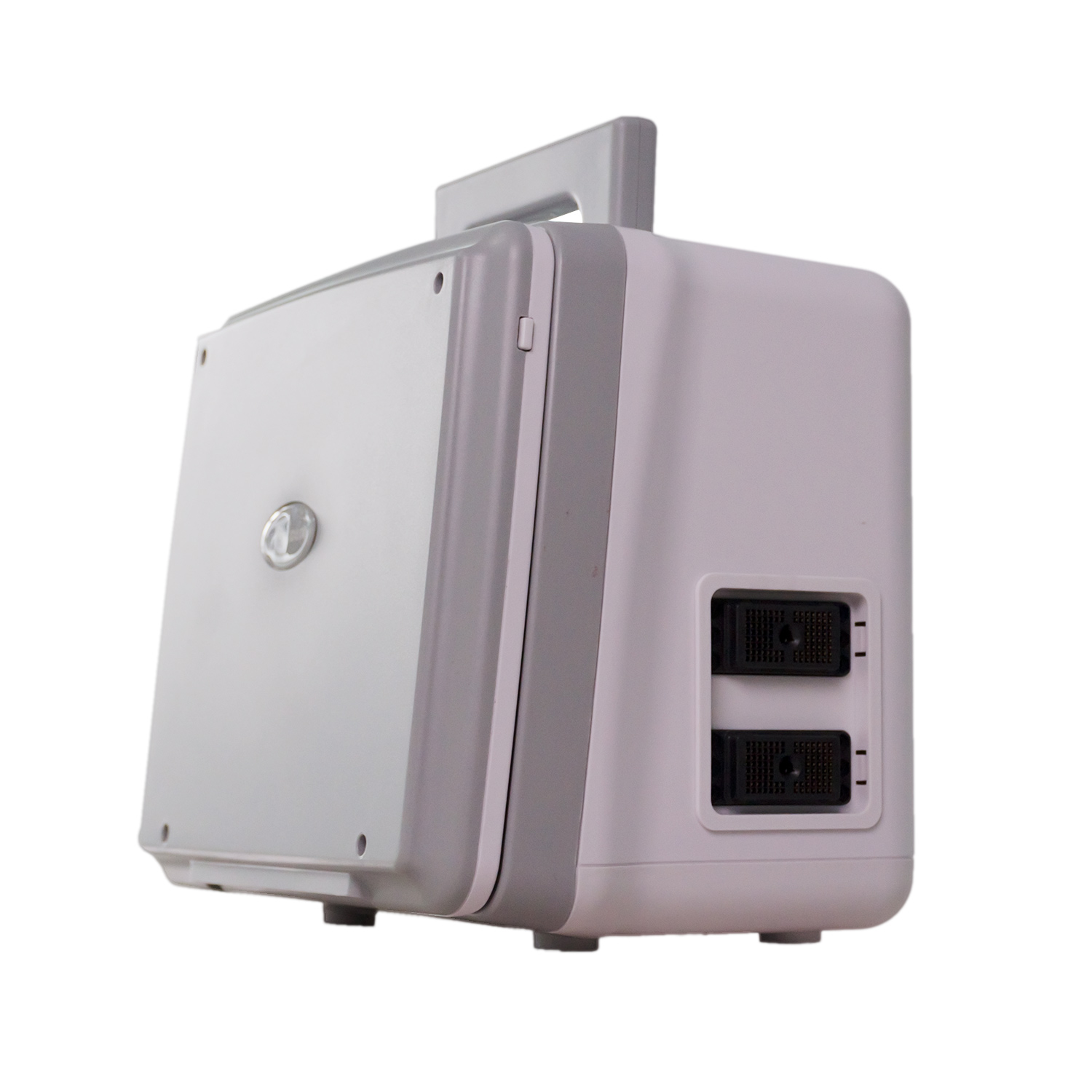

6. 2probe connectors. Probe automatic identfication;

7. 2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.

8. Report page is generated automatically.

9. According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
