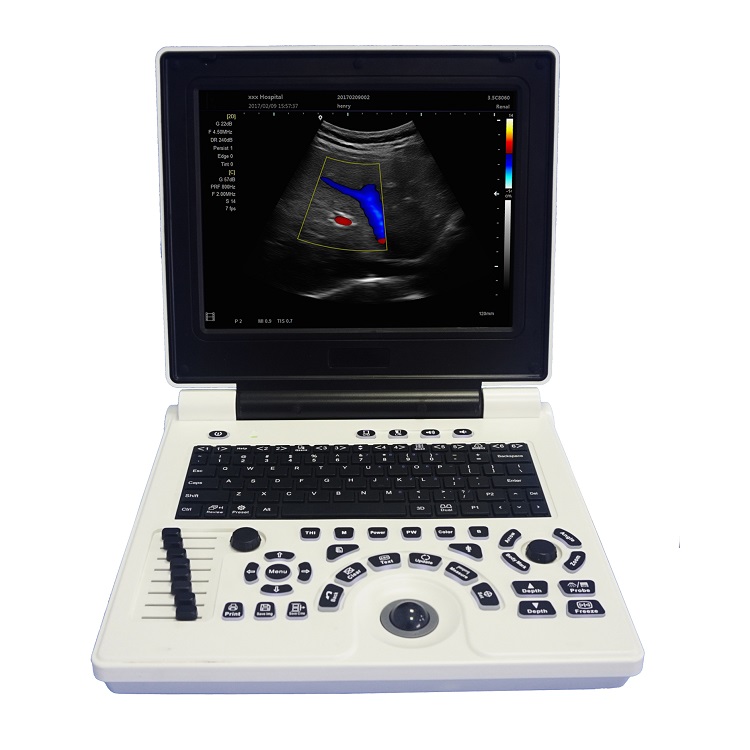

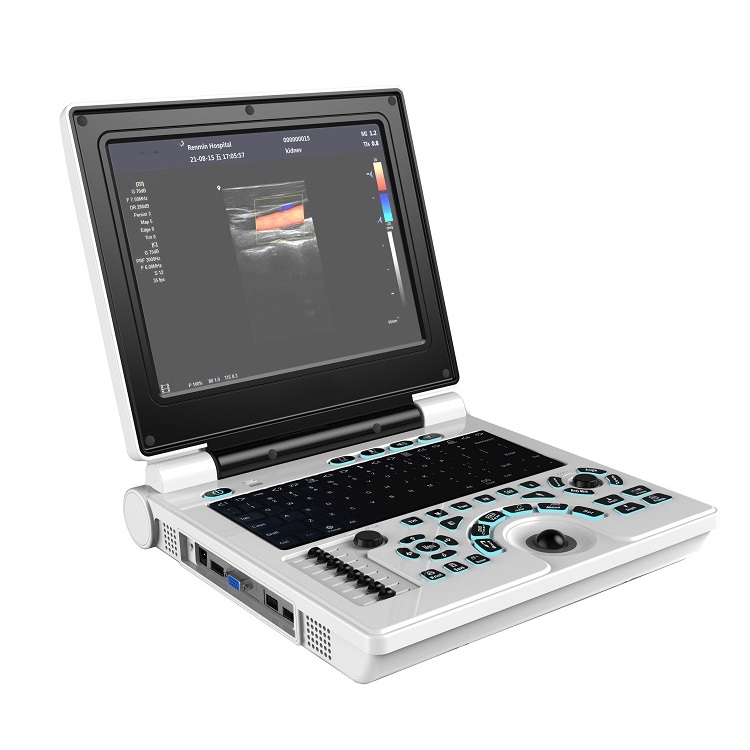

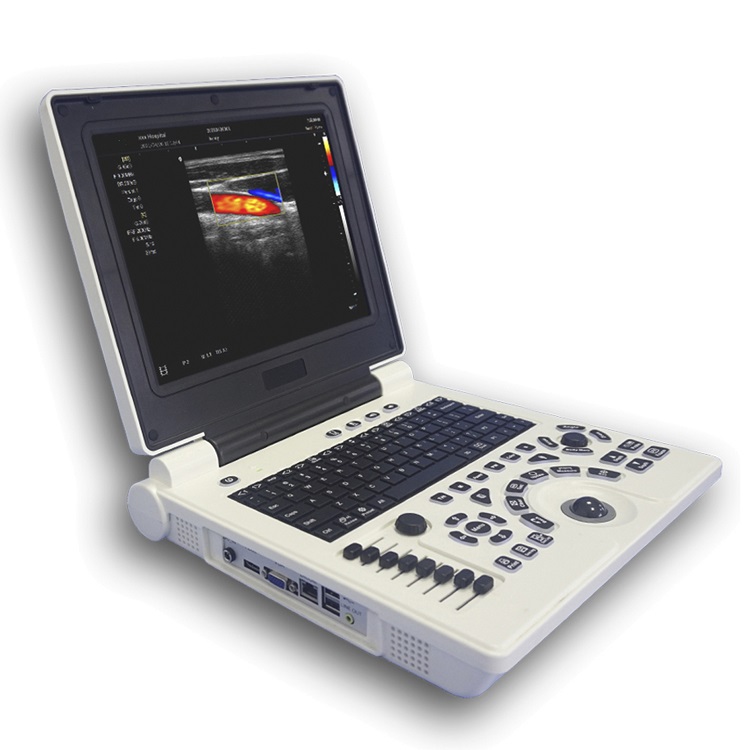

M225 Laptop Color Doppler Ultrasound Scanner

M225 Laptop Color Doppler Ultrasound Scanner

Specifications

laptop color doppler ultrasound scanner:GYN, cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births

-Application

Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc

-Displaying mode

B, 2B, 4B, left&right, B|M, B|D, PW, M, B mode, part zoom,  B|C|D, B|C|M, B|C,

duplex, PW, CFM, CPA

-Signal processing

Full-digital beam forming,

dynamic filter, orthogonal

demodulating,

space-time filter, dynamic

real-time receiving focusing, RDA, DRA, spectral processing, CFM processing

-Image processing

THI,specklereduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composit processing of tissue and blood flow image

-General measurement

B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram,

cross-section diagram

M mode: cardiac rate, time, distance, speed.

-Measurement & report packages

GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.

-Storage function

Probe parameter, image, cine loop, measurement data and report

-Cine loop

Operated by automatically and manually, speed optional, searching cine loop, forward/ backward cine loop

- Input/output interface

VGA, network, USB, VIDEO, parallet communication port, serial communication port

-Standard configuration

Main unit, 3.5MHz convex probe,  15" LCD monitor, one probe connector, USB port

DICOM3.0

-Optional configuration

7.5Mhz linear probe

7.0MHz trans-vaginal probe

3.5MHz phased array probe

Thermal printer

laser printer

Trolley
