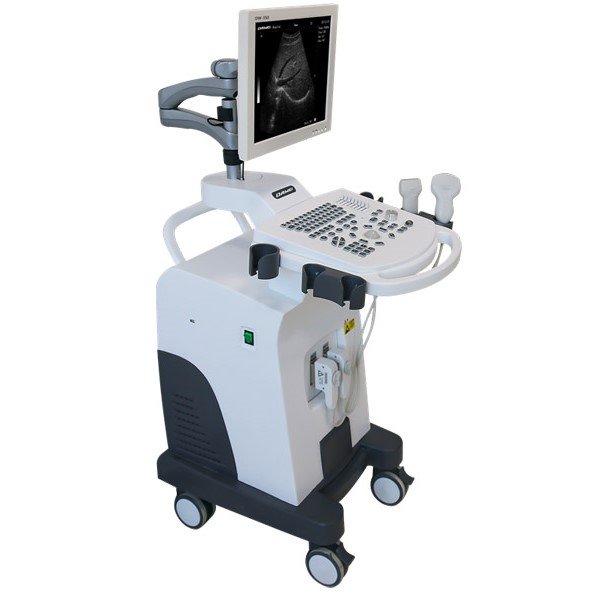

M209 Full-digital Trolley Ultrasound Scanner

First-class digital imaging technology, more clearer image:

Full-digital beam imaging technology

Real-time dynamic receiving focus point by point

Real-time dynamic sound velocity changed

High-accuracy DSC Digital image formation technology

Intelligentized 8-segment TGC adjustment

Progressive SMT components technology to ensure machine reliability

USB port: storable and readable

Flexible and convenient operating system:

15 inch LED liquid crystal display, angle range is more flexible to adjust

Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom

Intelligentized menu,man-machine diaglogue is easy and quick

Puncture guide line can display under B mode, angle and position are adjustable

More magnification display, Disease diagnosis more accurate

USB storage is connected outside, more convenient to upload pictures

Large capacity of cine loop,image can display circularly and automatically

Technical Specification :

Scanning mode: convex / linear / micro-convex

Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe

Monitor: 15 inch high resolution LED

Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation

Display mode: B, B+B, B+M, M, 4B

Detecting depth: ≥242mm

Resolution: lateral≤2mm, axial≤1mm

Blind Zone: ≤3mm

Geometry precision: lateral≤5%, axial≤5%

Gray scale: 256

Electronical focusing: 2 focuses combination randomly

Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback

USB port: storable and readable

Image storage: 8

Local zoom can be used at real time.

Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)

Body marks: 30

Probe interface: 2

Pseudo color: 7

Image processing: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).

Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table,  heart package etc.

Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.

Output interface: PAL-D, SVGA (SVGA color monitor), USB port .

With the puncture guiding function, line position can be adjusted

With gravel positioning, dynamic target area tracking function

Main power supply: AC220V±22V , 50/60Hz

Standard configuration:

15 inch high resolution LED

3.5MHz Multi-frequency convex probe(2.5MHz-4.50MHz)

Options:

1) 6.5MHz High frequency Trans-vaginal probe (5.5MHz-7.5MHz)

2)7.5MHz High frequency Linear probe (6.5MHz-8.5MHz)

3) 7.5 MHz High frequency Trans-rectal Probe (6.5MHz-8.5MHz)

4) Color laser printer
