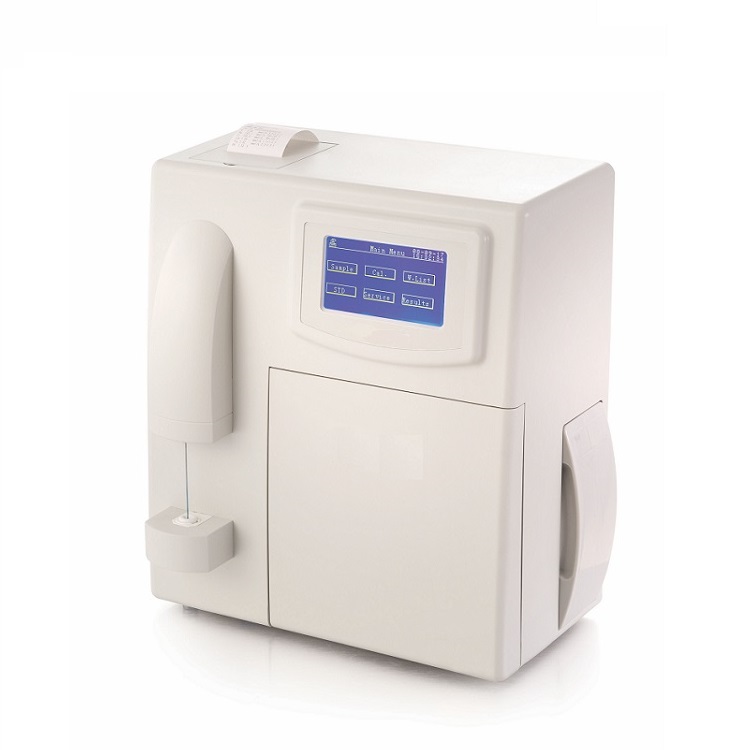

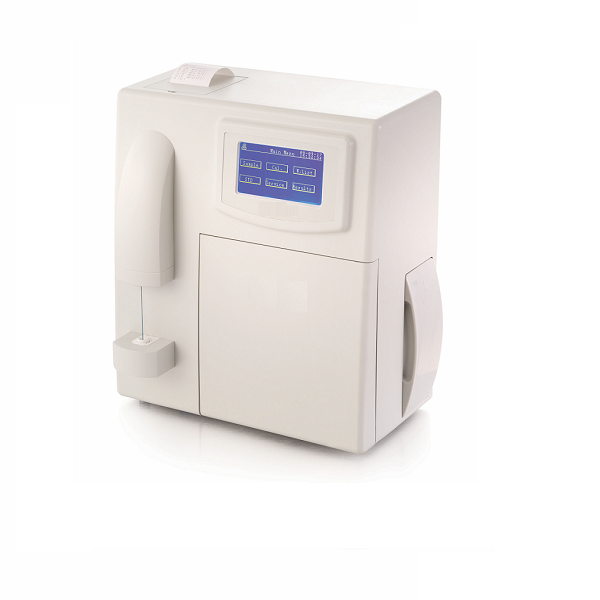

M104 Electrolyte Analyzer

M104 Electrolyte Analyzer

Features

Compact, cost-efficient and easy - to- use

Excellent precision and reliability

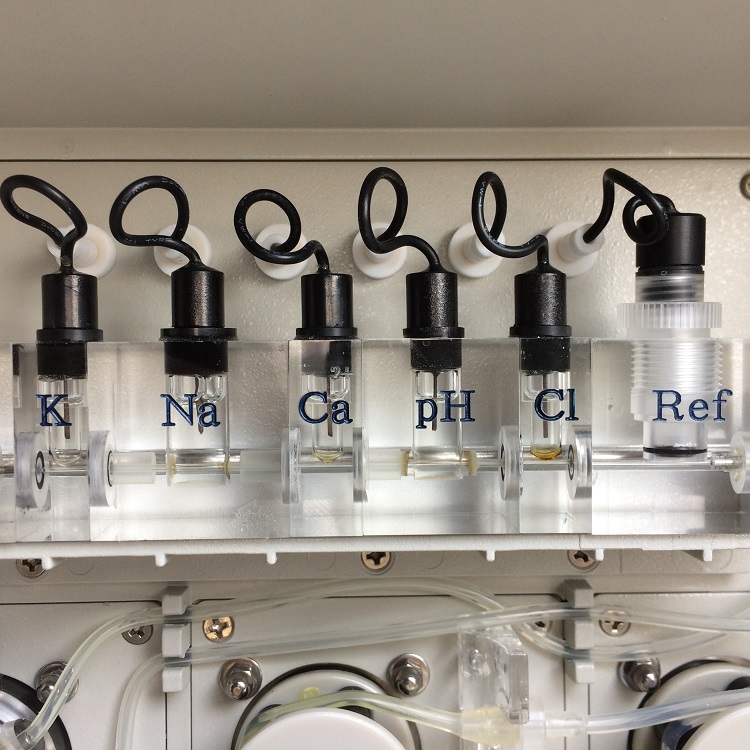

Long life, high performance, maintenance –free electrodes

Automatic sampling, washing and calibration

Touch screen ,large LCD display

Internal thermal recorder，supporting barcode reader

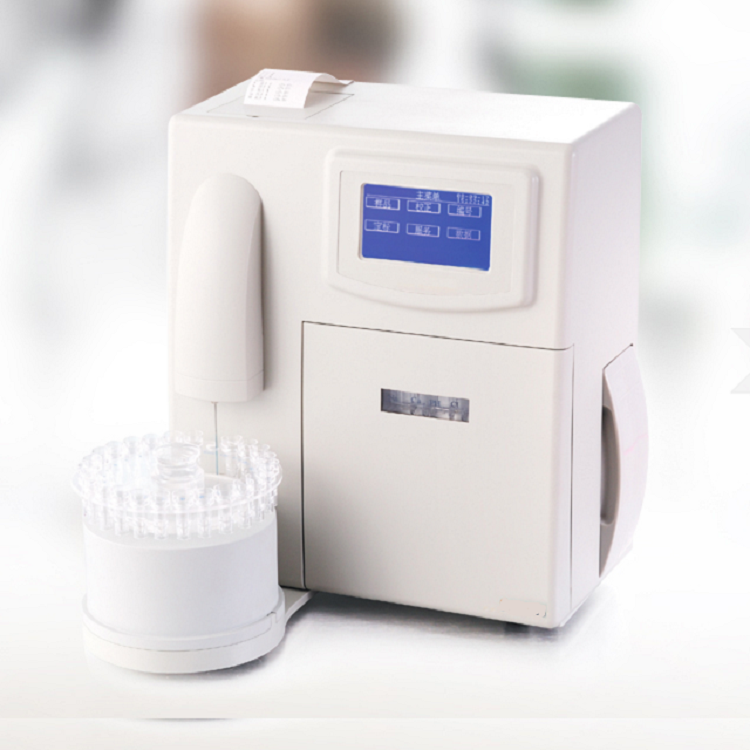

Auto sampler optional

Specifications

Principle:            Direct measurement by Ion Selective Electrode (ISE)

Sample:             Whole blood, serum, plasma, diluted urine

Sample volume       100~150µL

Throughput:          up to 60 samples/h

Data storage:         up to 200 patient result

Calibration:          Automatic or On-demand

Input:               Touch-screen

Display:             Large LCD with backlight

Output:              Internal thermal recorder, RS-232 serial port

Working Environment:  Temperature: 15ºC~32ºC

Relative humidity: 85%

Input voltage:         AC 220V/110V ±10%, 50/60Hz

Power consumption:    60W

Dimensions:          440mm×380mm×350mm (H×W×D)

Weight               Main unit –10kg

Auto sampler (option) – 1.5kg

Measuring range Reproducibility(CV%)

K+ 0.50~15.00 mmol/L ≤1.5%

Na+ 30.0~200.0 mmol/L ≤1.0%

Cl- 30.0~200.0 mmol/L ≤1.5%

Ca2+ 0.10~5.00 mmol/L ≤2.0%

Li+ 0.20~3.00 mmol/L ≤3.0%

pH 4.00~9.00 unit ≤1.0%
