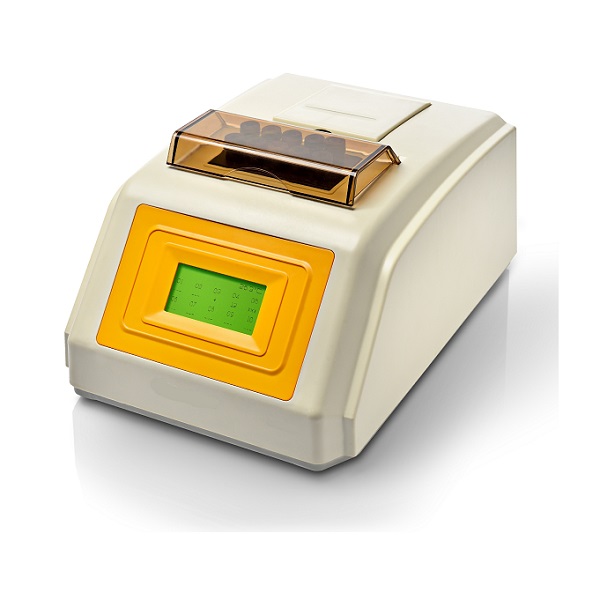

M111 ESR Analyzer

M111 ESR Analyzer

Features:

Infrared optical detection technology

Automatically scanning blood and location of the plasma interface from time to time with accurate positioning

Internal thermal printeEr SR curve display and print-out

Automatically adjusting the ESR results under the detecting temperature (15.C -32.C)to the ESR values at 18℃ closely related with Westergren results

The results are not interfered by as jaundice hemolysis or chyle

Specifications:

Measuring principle      Infrared barrier

Measuring time             30 minutes

Measuring precision      <0.2 mm

Reproducibility              < 3%

Temperature Precision   <0.3℃

Sample volume              <1.6mL whole blood anticoagulant

Reading channel           10

Display                         LCD screen with backlight

Interface                       RS-232 serial port

Print                              Internal thermal recorder

Operation conditions    Temperature 15℃ ~32℃

                                      Humidity≤85%

Power supply                AC 220V/110V±10%,50/60 Hz

Dimension                    320mmx260mmx158mm (LxWxH)

Netweight                     5kg
