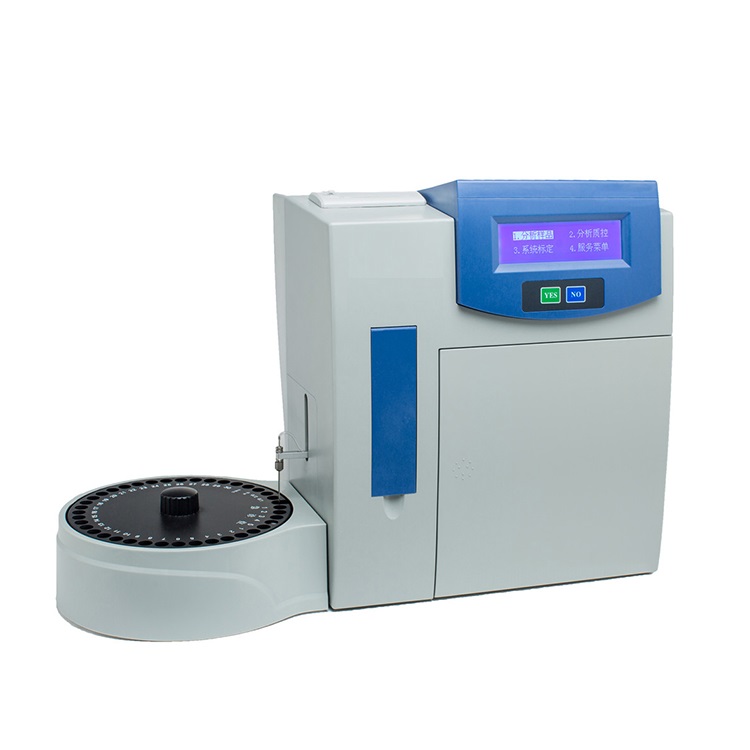

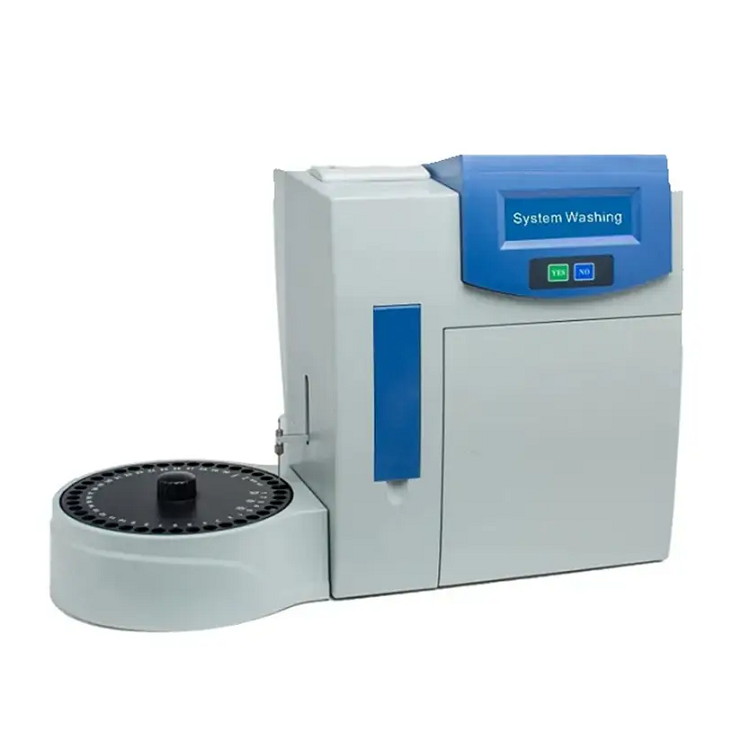

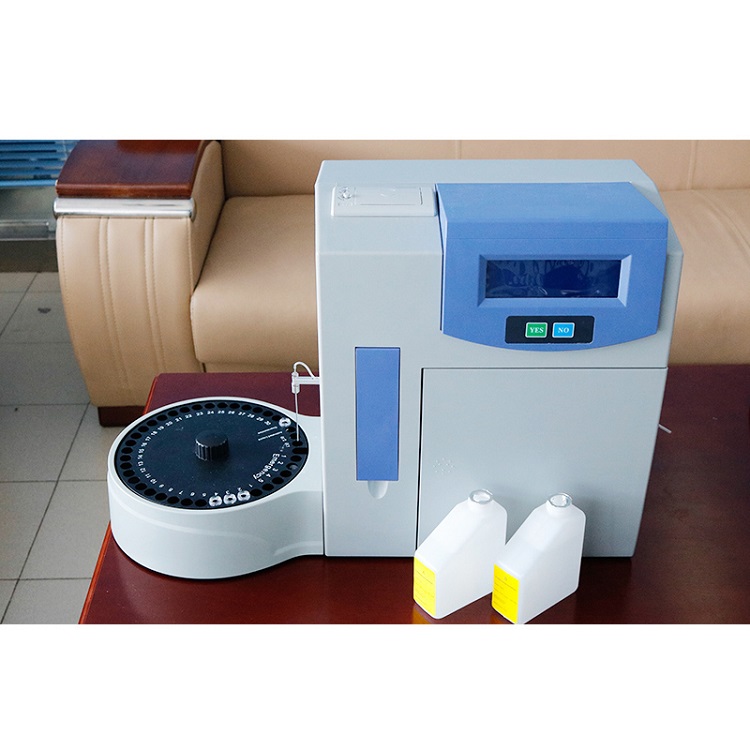

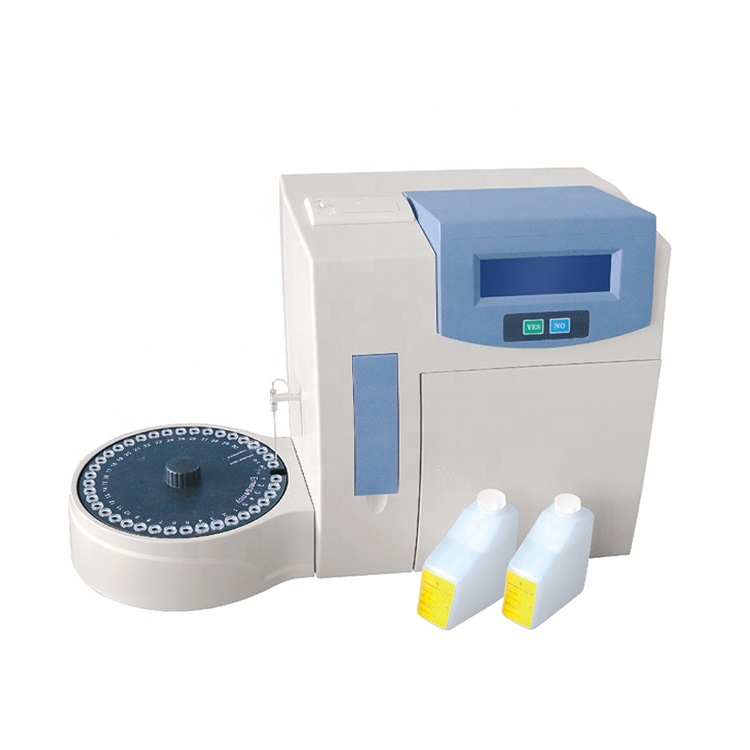

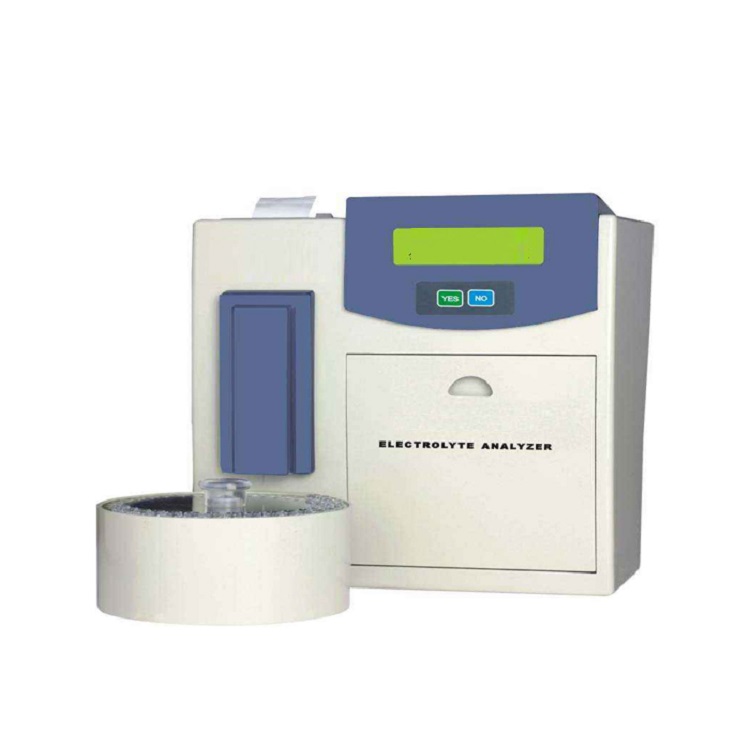

M105 Blood Electrolyte Analyzer

Features:

Simple YES/NO prompted operation

High accurate and long life electrode and TCO2 sensor

Sleep mode to reduce reagent consumption

Rapid test speed of 80 tests per hour

Minimum sample volume is 60ul

Individual reagent to avoid waste

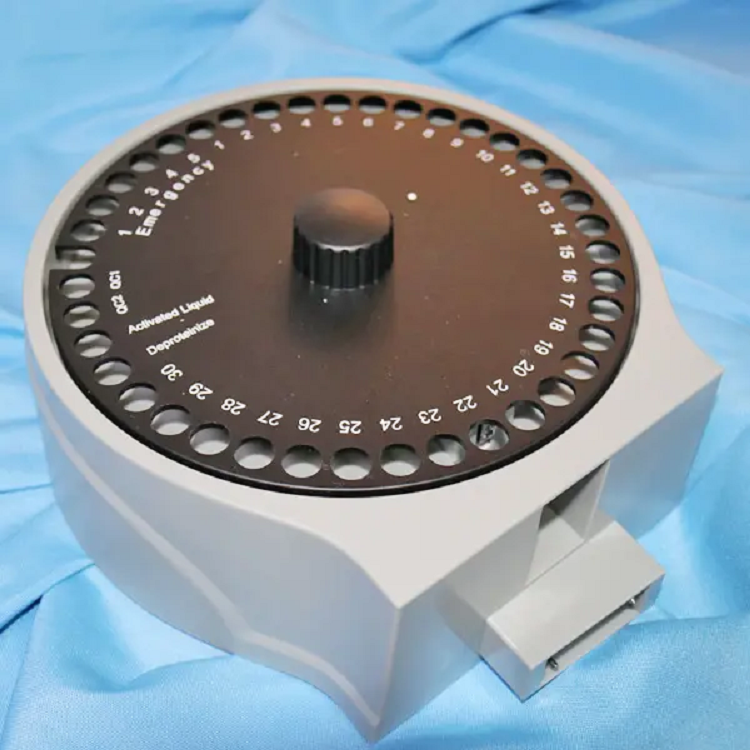

Option: Sample tray

Parameter configuration:

A  K, Na, Cl

B  K, Na, Cl, TCO2

C  K, Na, Cl, Ca, pH

Specification:

Sample: serum, plasma, whole blood, cerebrospinal fluid and dilute urine

Measuring speed: ≤25s

Analysis Method: ion selective electrode (ISE)

Sample volume: 60-300ul (3 parameters to 11 parameters)

Sample position: 35 positions (including 1 QC)

Storage: up to 10,000 test results

Printer: Internal thermal printer

Interface: RS232 port

Working environment: Temperature: 5-40℃

Relative Humidity: ≤ 80 %

Atmospheric pressure: (86~106) kPa

Power supply: 220V±20V, 50-60Hz

Power: ≤120W

Dimension:380mm*270mm*400mm

Net weight:8Kg

Package Size(W*D*H)：490*390*700mm

Gross weight: 15Kg
