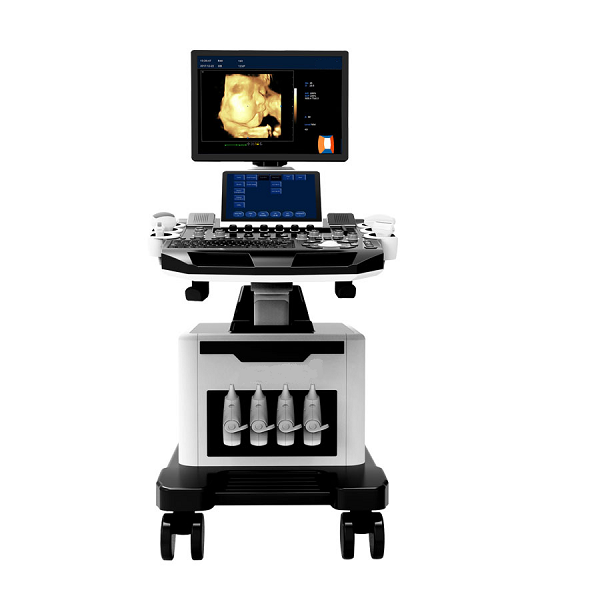

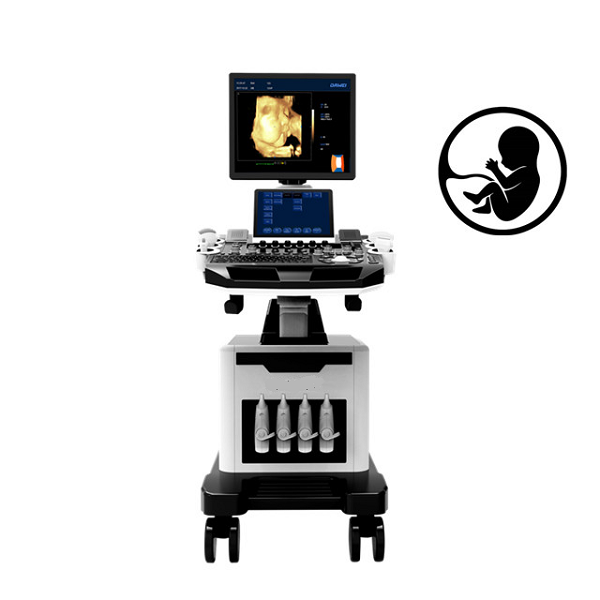

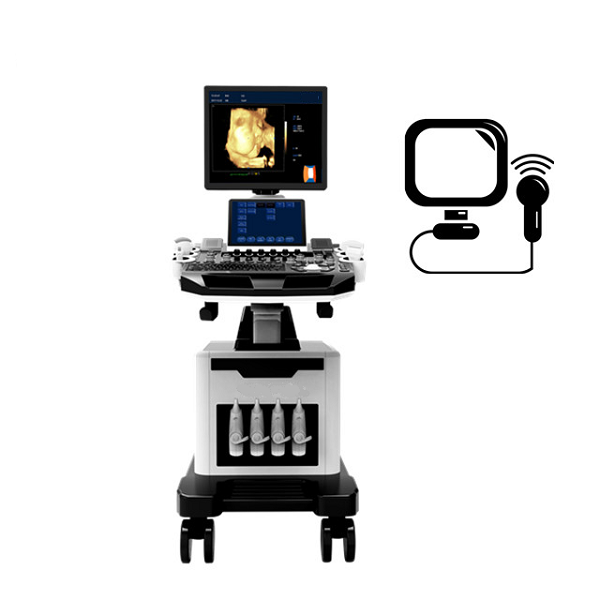

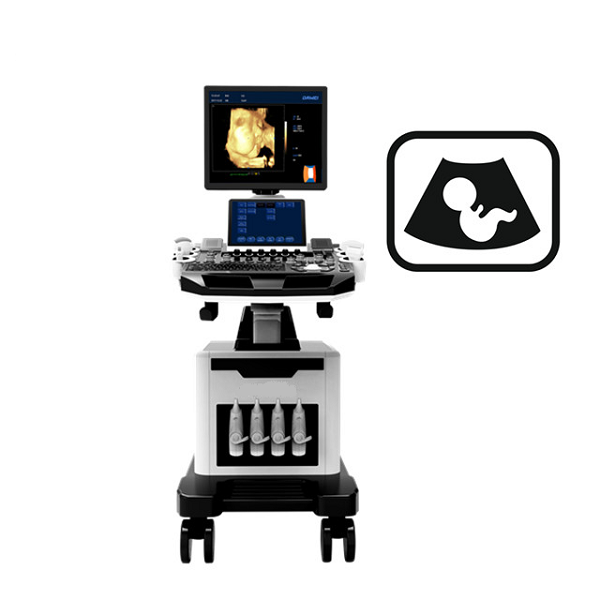

M229 4D Color Doppler Ultrasound System

M229 4D Color Doppler Ultrasound System

M229 complete ultrasonic diagnostic system gathers digital color doppler imaging technology, speckle reduction technology, multi-beam parallel imaging technology, effective file management system and versatile professional software. Deluxe appearance with ergonomic touch screen, M219 brings unexpected scanning experience for doctors.

Frontier imaging processing technology

Multi-beam parallel processing

After emitting one wave, it receives echo signals from different directions, improving image’s time resolution and decreasing noise of frame frequency.

Intelligent speckle reduction

Automatically recognize and enhance effective tissue information of echo’s signal, in order to decrease and eliminate noise, improve signal noise ratio and make images clearer.

THI

Adopting echo wave’s tissue harmonic imaging, to reduce the overlap structure and side valve's distortion, improve space resolution and contrast resolution.

Composite gain

Application of TGC and D-AGG, to keep the undistorted echo signals, and realize high signal noise ratio. Application of TGC gain, to linearly amplify the inputting signal’s strength so that to improve the outputting signal noise ratio and dynamically adjust TGC to the best values.

Professional measurement software packages

OBSTETRIC MEASUREMENT

ANDROLOGY MEASUREMENT

GYNECOLOGICAL MEASUREMENT

UROLOGY MEASUREMENT

PERIPHERAL VASCULAR MEASUREMENT

MULTIPLE BIRTHS MEASUREMENT

SMALL PARTS MEASUREMENT

PLASTIC SURGERY MEASUREMENT

CARDIOLOGY MEASUREMENT

Operating Mode:

B, 2B, 4B, B/M, M, B/C/D, B/D, CW, PW, Velocity, Power(direction), Histogram, Triples/Duplex etc.

Standard Configuration:

Main Unit

3.5Mhz convex probe

4D Volume probe and software

19’’ LCD display with 10’’ touch screen

CW function ( work with phased array probe)

USB 2.0 ports

DICOM 3.0

DVD-RW

Optional Configuration:

6.5Mhz R10 trans-vaginal probe

7.5Mhz linear probe

2.5Mhz phased array probe

Elastography

Printer
