Patient Monitor

M613 Multi Parameters Patient Monitor

Brand: Medshine
Model No.: M613
Certificate: CE,ISO
Warranty:12 months
Product description: Patient monitors measure, record, distribute and display combinations of biometric values such as heart rate, SPO2, blood pressure, temperature and more.
INQUIRY

M613 Multi Parameters Patient Monitor

Advantages

8" inch high-resolution color screen

ECG, NIBP, SpO2, RESP ,TEMP,PR

Capture dynamic waveforms

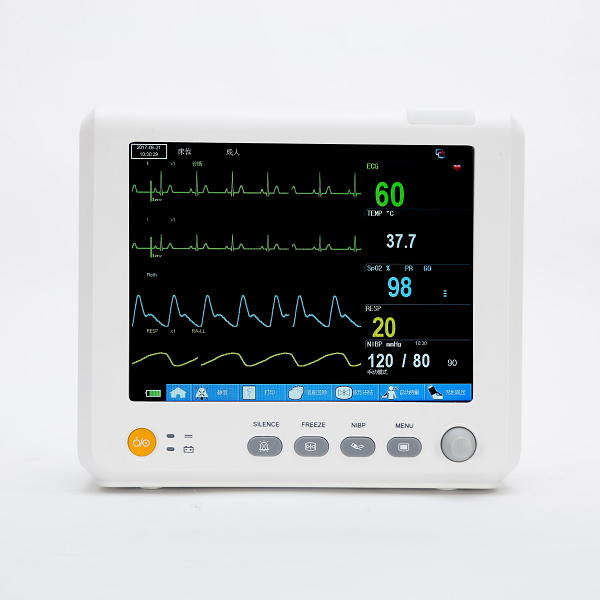

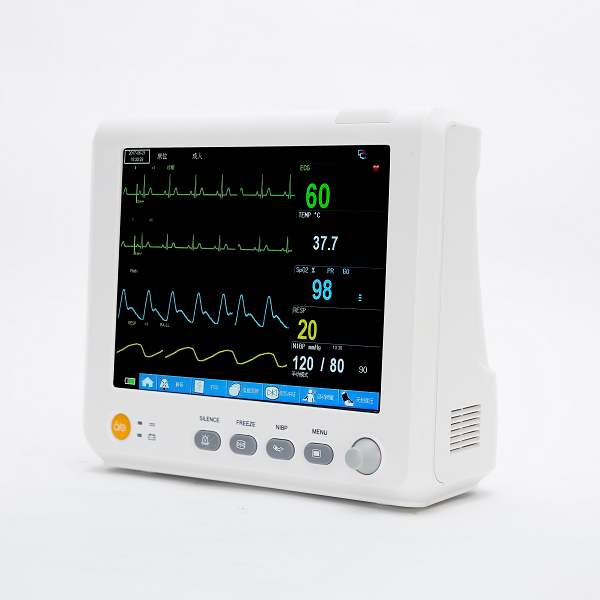

The display is 8 inch high resolution color TFT.

It is equipped with 6 parameters including ECG, NIBP, SpO2, RESP ,TEMP,PR. These four parameters can be flexible.

You can choose different combinations as you need.

This monitor is built-in rechargeable lithium battery.

The working capacity is 5 hours.

Specification:

ECG

*lead mode;I,II,III,AVR,AVL,AVF,V
*Gain:X0.25,X0.5,X1,X2
*Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal)
Resolution:1 BPM
Accuracy:+-1%
* ST measurement Range:-2.0-+2.0mV
Accuracy:+-10%
*Pacemaker:Yes
*Sweep Speed:12.5 mm/s,25mm/s,50mm/s
*Bandwidth:Diagnostic:0.05--130Hz
Monitor: 0.5--40Hz
Surgery: 1-20Hz
