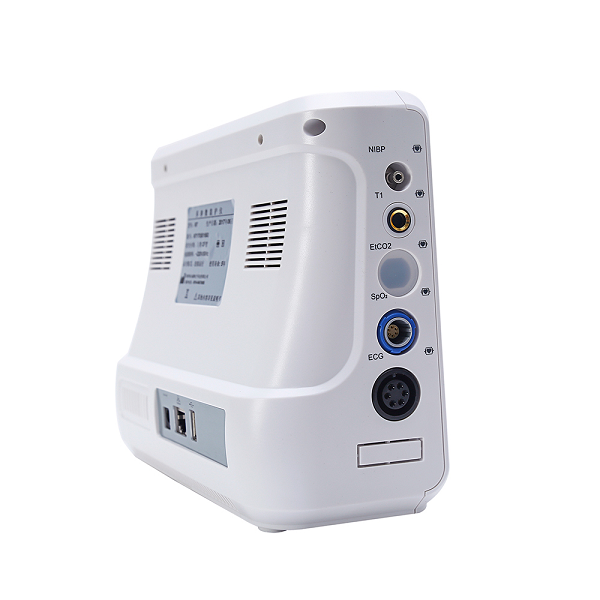

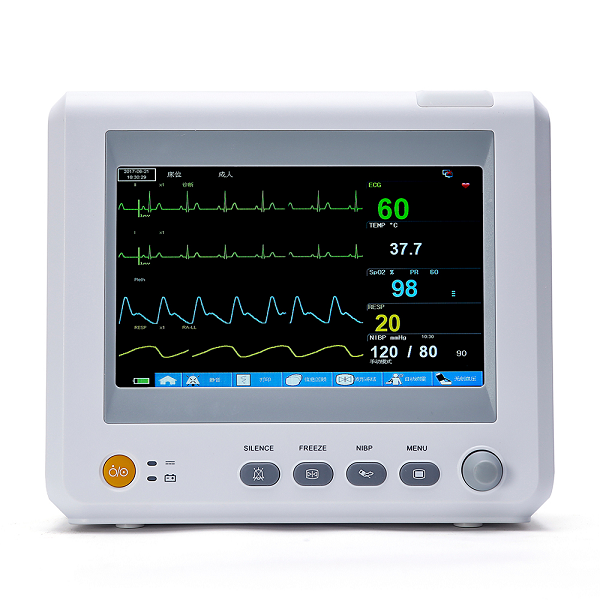

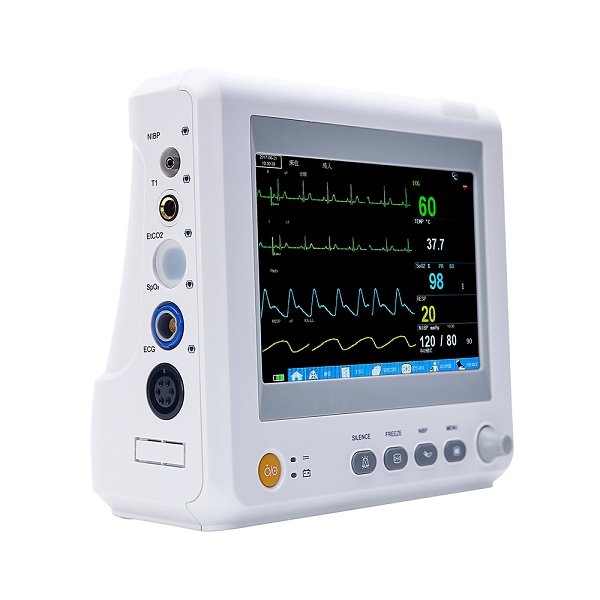

M612 Multi-parameter Patient Monitor

M612 Multi-Parameter Patient Monitor

Advantages

ECG:3/5 lead

display:7 inch color screen

Parameter:SpO2,PR,NIBP,ECG,RESP,TEMP

Rechargesble battery:Built-in rechargeable lithium battery

Optional Paremeter:ETCO2

Support Solution:Wall mounting,Mobile trolley

Patient Range:Adult,Pediatric,Neonate

Alarm Mode:Audio,Visual alarm

Specification

ECG

*Lead mode;I,II,III,AVR,AVL,AVF,V

*Gain:X0.25,X0.5,X1,X2

*Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal)

Resolution:1 BPM

Accuracy:+-1%

* ST measurement Range:-2.0-+2.0mV

Accuracy:+-10%

*Pacemaker:Yes

*Sweep Speed:12.5 mm/s,25mm/s,50mm/s

*Bandwidth:Diagnostic:0.05--130Hz

Monitor: 0.5--40Hz

Surgery: 1-20Hz

SPO2:

*Measure Range:0-100%

*Resolution:1%

*Accuracy:2%(70-100%)

*Pulse Rate:20-250BPM

*Resolution:1BPM

*Accuracy:+-3BPM

NIBP:

mode:Manual,Automatic,Continuous

*Unit:mmHg,Kpa

*Measure Range:

Adult:

SYS: 40-280mmHg

DIA: 10-225mmHg

MEAN:20-240mmHg

Pediatric:

SYS:40-220mmHg

DIA: 10-160mmHg

MEAN:20-170mmHg

Neonatal:

SYS:40-135mmHg

DIA:10-100mmHg

MEAN:20-110mmHg

*Resolution:1mmHg

*Accuracy:+-5mmHg

RESP:

*Measure Range:0-150BrPM

*Resolution:1BrPM

*Accuracy:+-2%
