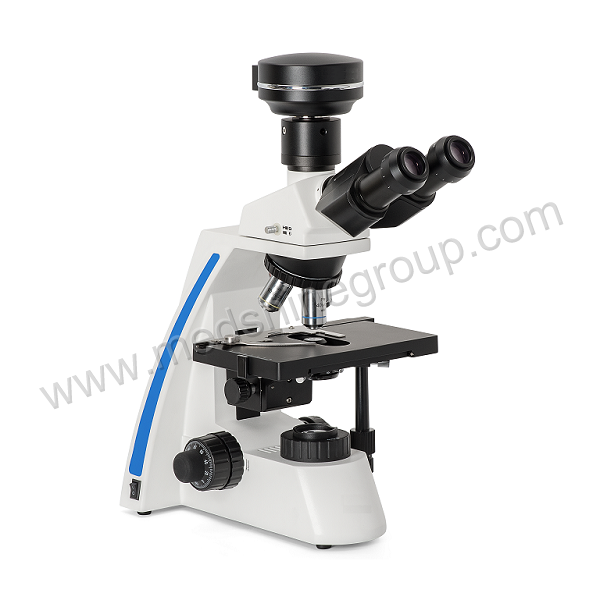

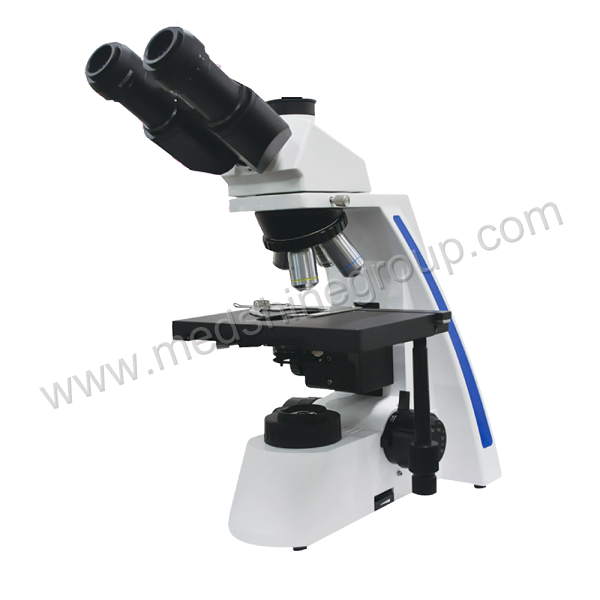

M153 Biological Microscope

Brand: Medshine
Model No.: M153
Certificate: CE,ISO
Warranty:12 months
Product description: Features: Infinity Corrected achromatic optical system Infinity plan achromatic objectives Eyepiece filed of view 22mm, diopter adjustable Head with 100% light for eyepiece or camera. 0.5X C-mou
INQUIRY

M153 biological microscope received positive feeback from medical and educational area, it offers superior optical performance with excellent cost-effciency. Plan achromatic objectives are flat and clear in view, bring microscope users high contrast and sharpness image. Wide field of view eyepiece is high efficiency for microscopy work. The illumination employs cold LED light has high bright and stable lighting. Rigid and durable construction makes the microscope maintains high performance even after long time using. More with 0.5X C-mount adapter for user to connect digital camera freely, mostly reproduce equal image in eyepiece.

Features:

Infinity Corrected achromatic optical system

Infinity plan achromatic objectives

Eyepiece filed of view 22mm, diopter adjustable

Head with 100% light for eyepiece or camera.

0.5X C-mount adapter for big field of view close to eyepiece view.

LED lamp color temperature around 4300K

Stage slider holder can hold double pieces slide at one time.

Can expand to polarizing and fluorescence function.

Specification

Optical system	Infinity Corrected Achromatic optical system
Observation tube	Hinged Trinocular tube, 30° inclined, interpupillary distance 53mm-75mm
Eyepiece	Wide field plan eyepiece WF10X / FN.22mm , high eyepoint
Nosepiece	Quadruple nosepiece with inward tilt
Objective	Infinity plan achromatic
	4X, NA0.1, working distance 21.5mm
	10X, NA0.25, working distance 7.5mm
	40X, NA0.60, working distance 0.65mm
	100X(oil), NA1.25, working distance 0.185mm
Condenser	Abbey condenser NA1.25
Focus	Coaxial coarse and fine adjustment with limit stopper and lock device
	Stage height movement (coarse movement stroke: 24mm)
	Stroke per rotation: 40mm
	Microstroke per rotation: 0.2mm

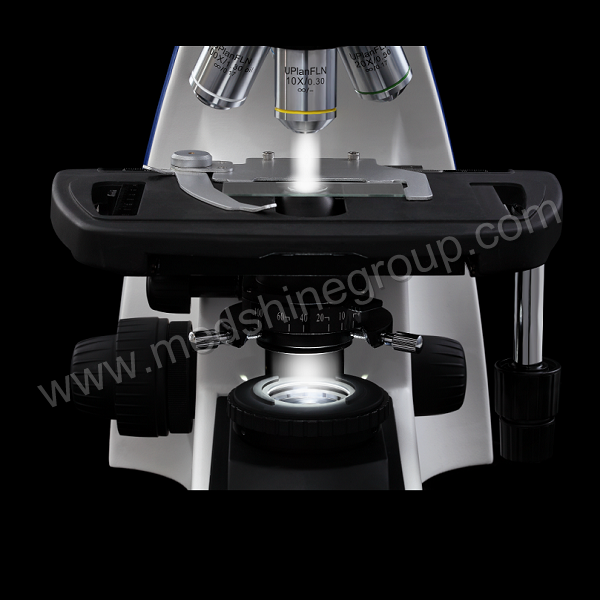

Stage	Double-deck mechanical stage, size 210×140mm, moving range 76mm×50mm slider holder can hold double pieces slides at one time
Transmitted light	White LED, brightness adjustable, color temperature 4300K
Power line	International standard
Adapter	0.5X C-mount adapter
