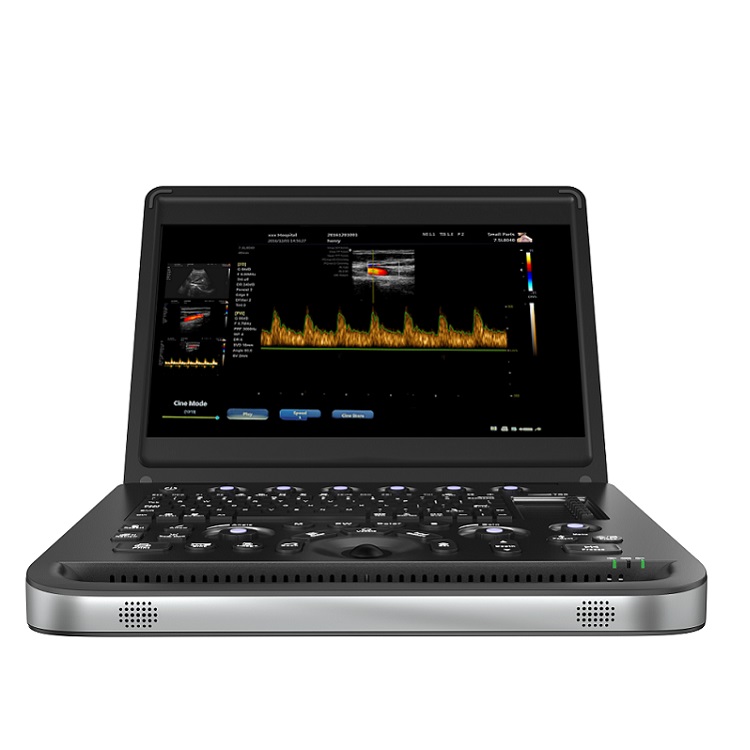

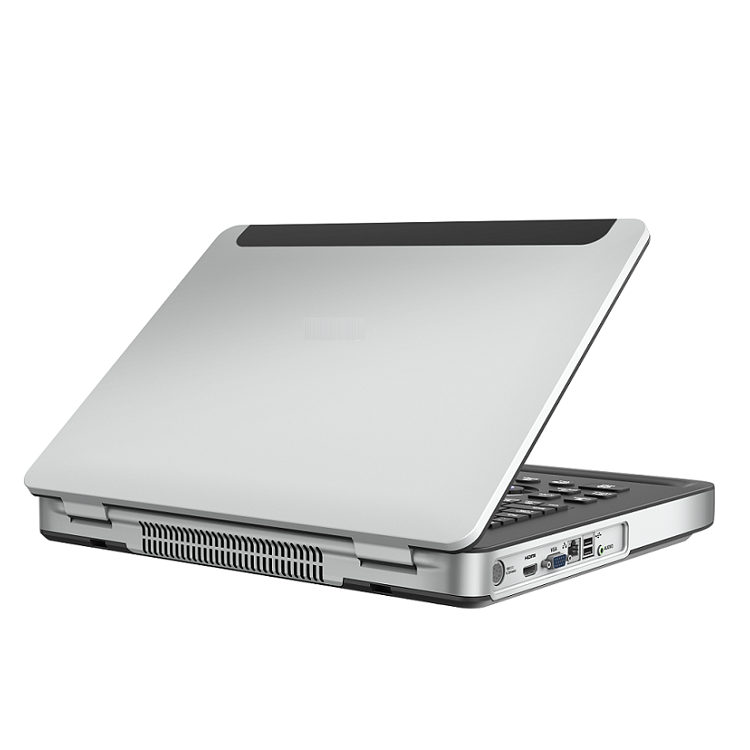

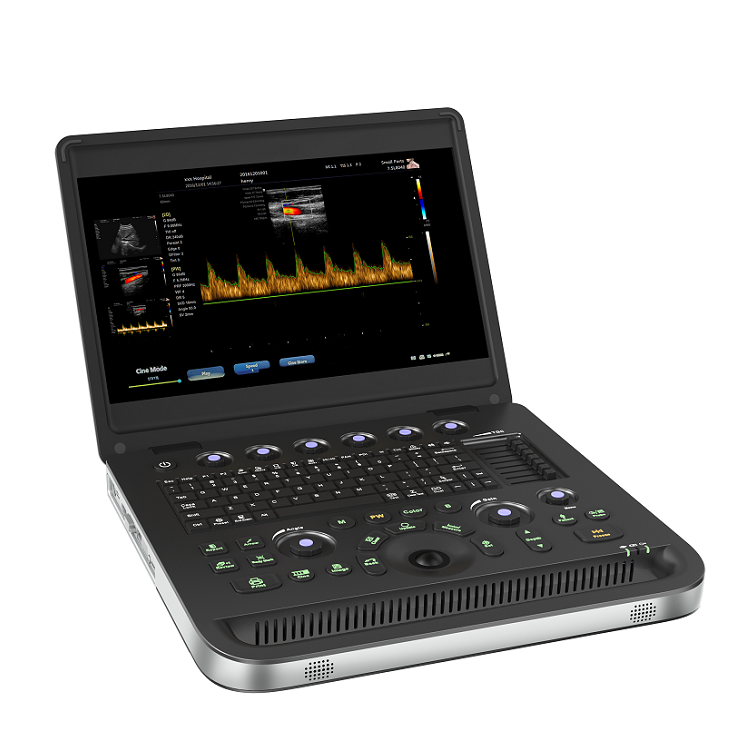

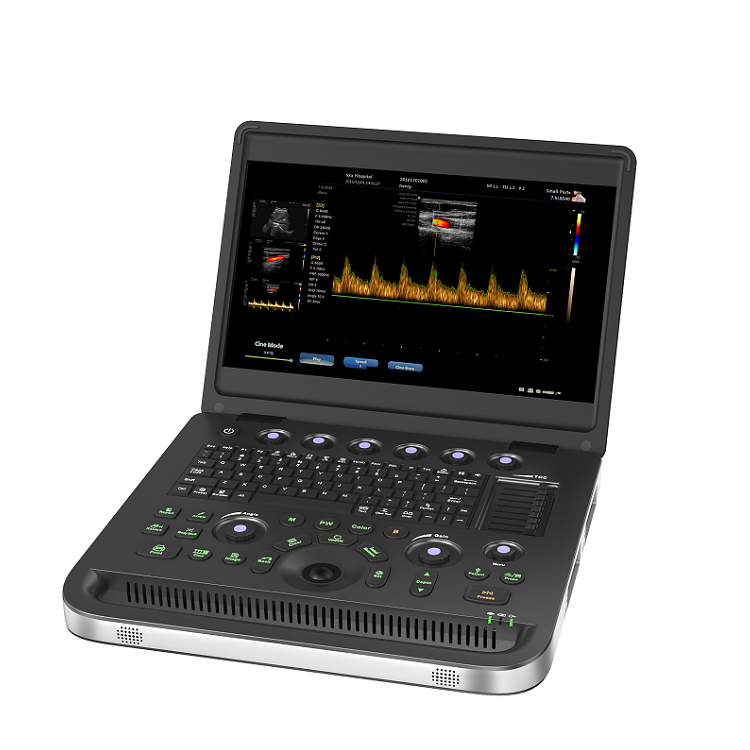

MN30 3D Color Doppler Ultrasound Scanner

Displayer

1920X1080 high resolution medical display

Version

Windows7

Application Mode

Abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model, total ten models;

Support Probe

Convex\Linear\Cavity\Micro-convex\Rectal

Display Modes

B,B/B,4B,B+M,M,CFM,B+CFM,PDI,B+PDI,PW,B+PW

E-zoom

Magnify 2 times of real time image

Dynamic Range

80~280dB adjustable

Gray Scale

256 scales

Depth Display

≥280mm

Gain Adjusts

8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;

B/D Dual-purpose

Lnear array: B/PWD; convex array: B/PWD

Focus Position

Focus mobility. 1,2,3 and 4-segments dynamic electron focusing

Image Processing

Digital beam forming, tissue harmonic imaging; image optimization and Edge enhancement, Frame average, Line average, Focus Optimization, Noise Restrain, acoustic power, sample volume,  color persist, color balance,color threshold pseudo differential inhibition, pseudo color, black and white reverse, mirror image, edge enhancement, gamma correction, contrast and brightness.

According to the user; s pattern style preference, the  parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menu.

Acoustic Output

Mechanical index and thermal index real-time display

Frequency Conversion

Support operating frequency according to the probe application, frequency range:2-12MHz

IMT Measurement

automatic measurement and analysis of vascular intima

Measurement & Calculation

B mode routine measurement, Distance, circumference, area, volume, angle, ratio, and stenos rate. M mode routine measurement, Gynecology measurement, Obstetrics  measurement, Cardiology measurement, Urology measurement, PW measurements, Other measurement.

Annotation Function

Hospital name, patient name, age and gender ,64 body marks (with probe position),Full-screen character annotation; Real-time clock display

Puncture Guide

Support adjustable angle puncture guide line in B mode

Gain Control

8 segments TGC and overall gain can be adjusted respectively

Image Polarity

Left and right flip, black and white flip, up and down flip

Capacity Cine Loop

Real time display 100-400 consecutive images which are memorized successively

Image Playback

Series playback or check one by one

Image Storage

Image storage, video storage, cine loop, disk storage capacity≥128G

Pseudo Color

16 kinds of pseudo color encoding can optional

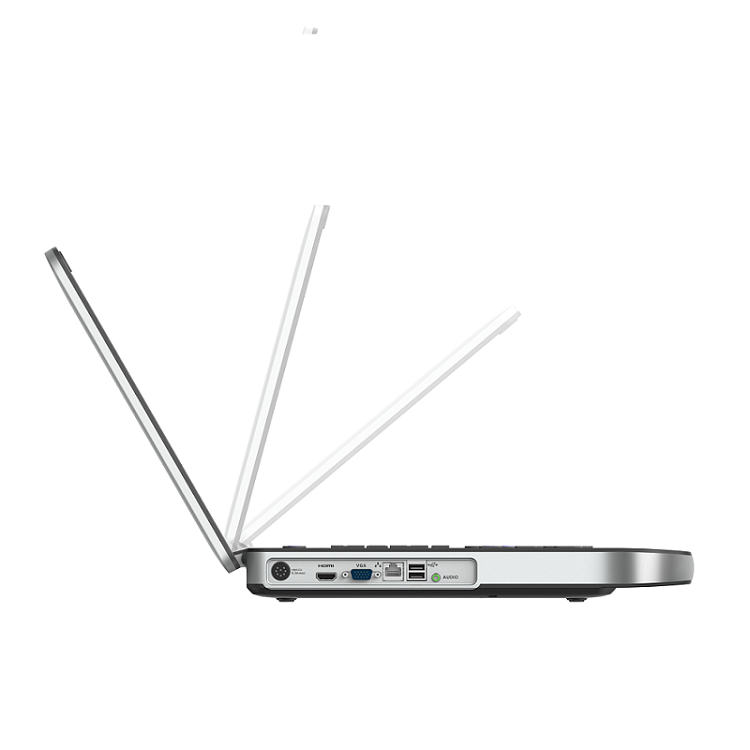

Output Interface

HDMI、VGA、DICOM、LINE、USB

Reporting System

Automatic report generation system, and can be full screen characters in both Chinese and English editor

Support

3D imaging

Memory

≥2GB

SSD

≥128GB

Languages

English,French,Portuguese,German,Indonesian,Russian,Spanish,Chinese

Battery

Build-in rechargeable battery works for about 4 hours

Dimension

378mm*350mm*56mm

Package

445mm*190mm*440mm(Length*Width*Height)

Gross Weight

6.5KG
