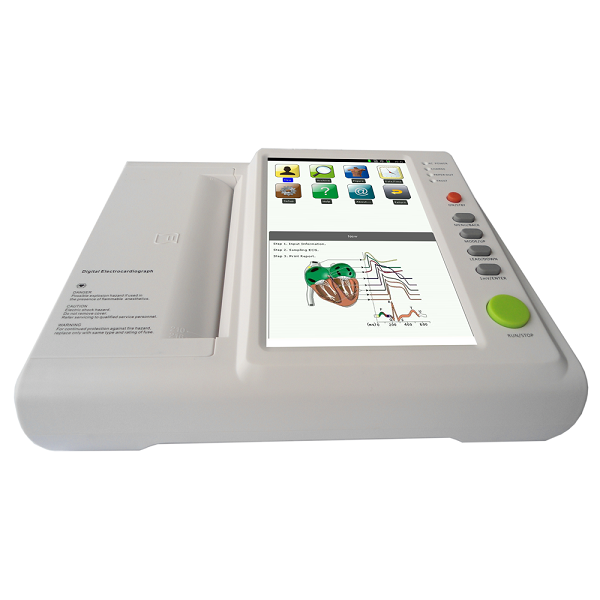

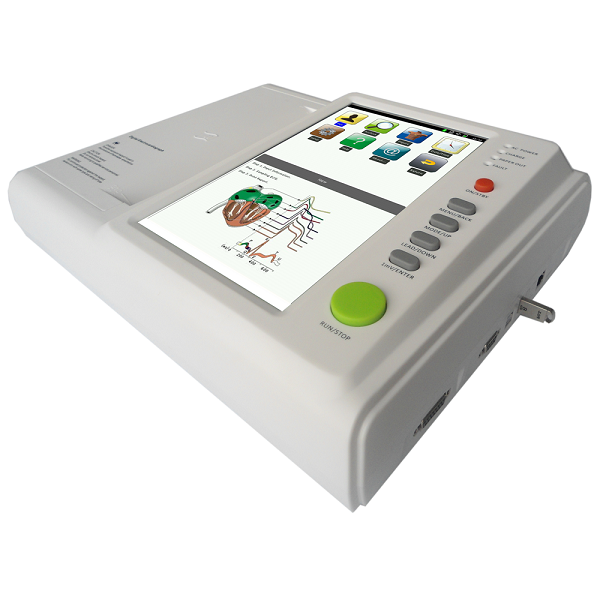

ME12 12 Channels ECG

Brand: Medshine
Model No.: M872
Certificate: CE,ISO
Warranty:12 months
Product description: An electrocardiogram (ECG or EKG) records the electrical signal from your heart to check for different heart conditions. Electrodes are placed on your chest to record your heart's electrical signals,
INQUIRY

ME12 12 Channels ECG

Function Features of ECG Machine

² Modern in design, light in weight, compact in size.

² Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.

² 10.2'' color touch-screen, both push-button and touch operation.

² Sensitive filters of ADS, HUM, and EMG.

² Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.

² Automatic adjustment of baseline for optimal recording.

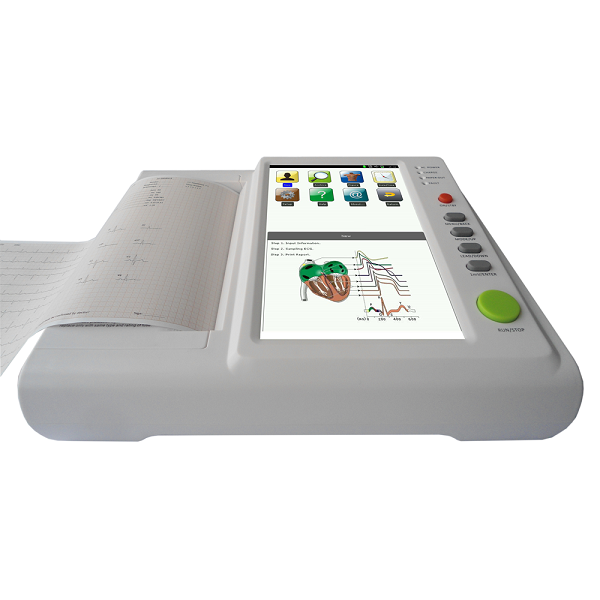

² Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.

² Lead off & lack off paper detection function.

² Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.

² Adapt to 100-240V, 50/60Hz AC power supply

² Historical data and patient’s information can be reviewed and printed.

² Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.

² The machine can store over 500 ECG reports in its built-in flash.

² Standard RS232 and USB communication interfaces.

² Connect with PC via ECG workstation software.

² Sleep mode to save energy and extend LCD life

² The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.

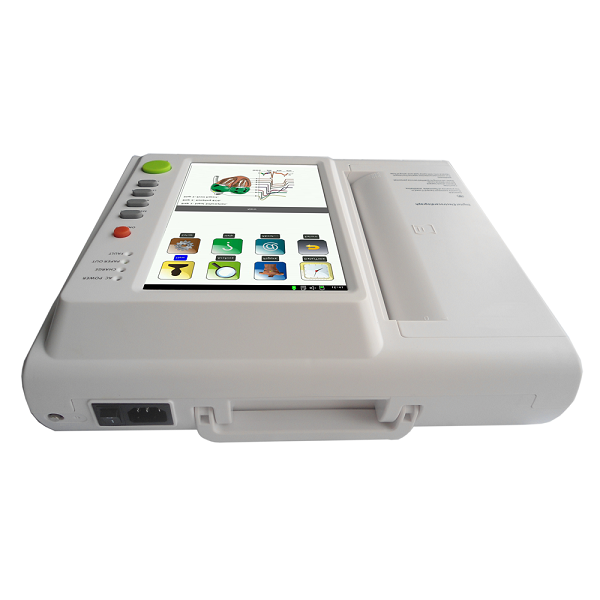

² Portable design with hidden handle, convenient to carry.

² 7 level printing thick can be chosen.

Parameters of ECG Machine

CMRR	≥ 100dB, with AC Filter	Calibrating voltage	1mV± 3%
Input circuit	Floating	Voltage tolerance	± 500mV
Input circuit current	≤ 0.1µ A	Time constant	> 3.2s
Resolution	12bit/1000Hz	Frequent response	0.05Hz~150Hz
Operation mode	Manual/Auto	Noise level	≤ 15µ Vp-p
Filter	AC. EMG Filter	Threshold	≤ 20µ V
Drift filter	Anti-Drift System	Paper speed	12.5, 25, 50mm/s (± 3%)
Input Impedance	> 50MΩ	Sensitivity	5,10,20mm/mV
Patient current leakage	< 10µ A	Recorder	High resolution thermal printer
Specification of fuse	T1.6A 250V Ø5×20	Battery	Built-in rechargeable Li-ion battery 14.8V(4000mAh)
Recording paper	Thermal recording paper	Package	365mm×306mm×109mm
