CPAP BIPAP

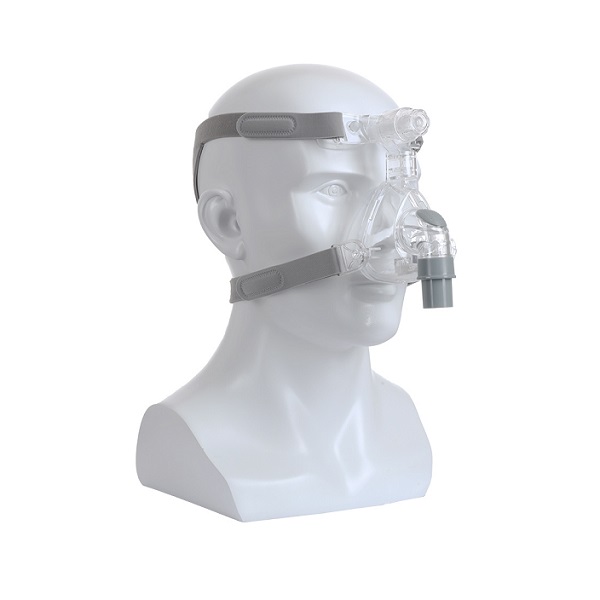

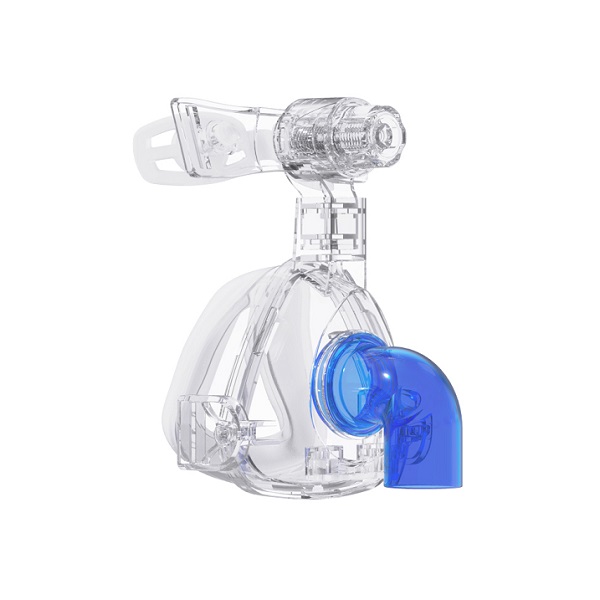

M544 CPAP BPAP Mask

Brand: Medshine
Model No.: M544
Certificate: CE,ISO
Warranty:12 months
Product description: The nasal mask provides an interface for application of CPAP or bi-level ventilation therapy to patients. It is for single patient use in the home/hospital/institutional environment.
INQUIRY

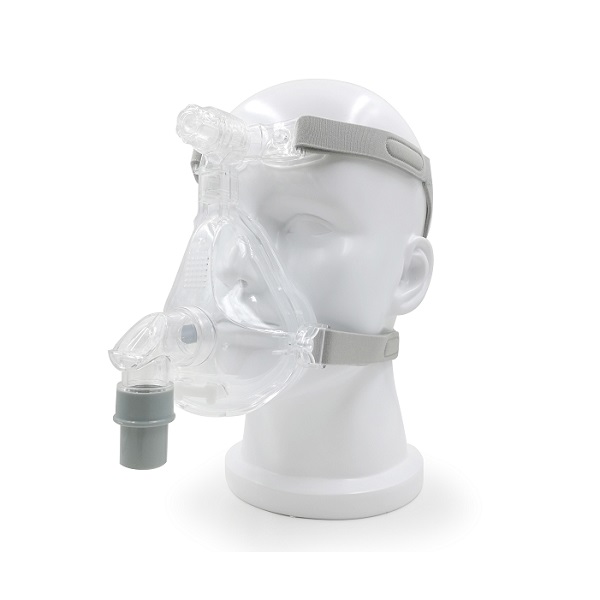

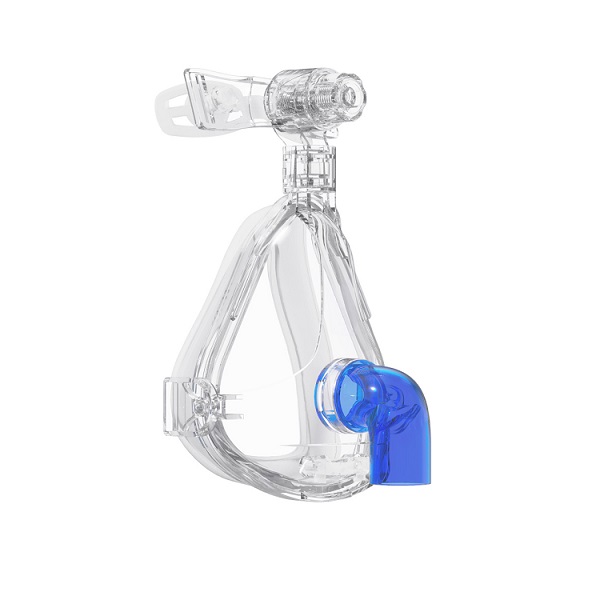

M544 CPAP BPAP Full Face Mask

(Vented or Non-vented)

Features:

1.Three size (S,M and L) to fit patient with weight >30kg

2.Air-leaking prevent: 2-layer of cushions made from medical silicon

3.Safe: with Anti-asphyxia valve and anti-blocking holes

4.Comfortable: two directions adjustment to fit any size of face

5.Easy to wear or take-off buckles

Application scope:

The nasal mask provides an interface for application of CPAP or bi-level ventilation therapy to patients. It is for single patient use in the home/hospital/institutional environment.

Specification

Difference	M544
Type	Vented, with anti-blocking holes	Non Vented
Connector	1 piece, Grey color male	2 pieces, Grey colored male type, and Blue colored female type

Common	M544
Tube compatible	φ22mm (ISO 5356-1)
Resistance	Drop in pressure measured at 50L / min ≤1 cmH₂O at 100L / min ≤2 cmH₂O
Dead space information	Dead space refers to the internal cavity of the mask elbow at the end of volume. Use medium size cushions, the volume of 270 ml.
Pressure range	4-30cmH₂O
Open-to-atmosphere pressure	0.7cmH2O
Close-to-atmosphere pressure	2.5cmH2O
Sound	In accordance with ISO 4871 Less than 35dBA
Environmental conditions	Operating temperature: + 5 ℃ to + 40 ℃; Operating humidity, 15-95% relative humidity, non-condensing. Storage and transport temperature: -20 ℃ to + 60 ℃; Storage and transport humidity: not exceeding 95% RH, non-condensing
Cleaning	Warm soapy water
Net Weight	Appox.: 0.5 kg
Dimensions	S: 175.9mm (height) × 110mm (width) × 112.5mm (thickness) M: 183.9mm (height) × 118mm (width) × 114.5mm (thickness) L: 194.9mm (height) × 122mm (width) × 114.5mm (thickness)
Packing list	Vented: Nasal Mask1, headgear1,User manual*1
Packing list	Non-vented: Nasal Mask1,headgear1,Female connector (Blue)1, User manual1
