M215 Array Ultrasound Probe Scanner

M215 Wireless Convex Ultrasound Probe Scanner

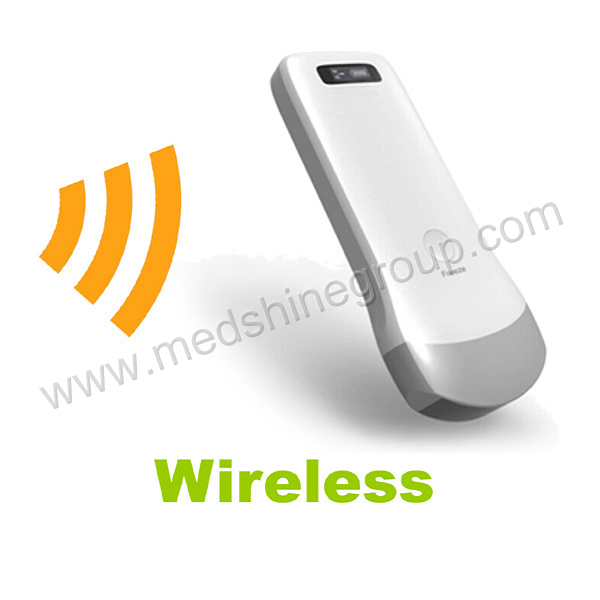

M215 is a wireless array probe scanner.

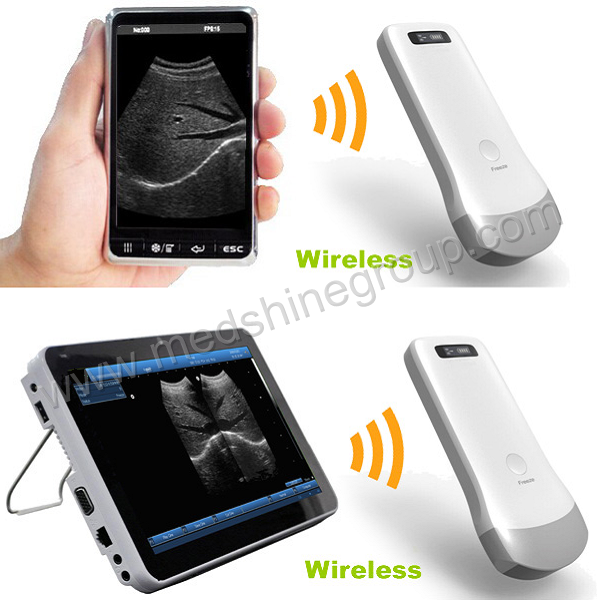

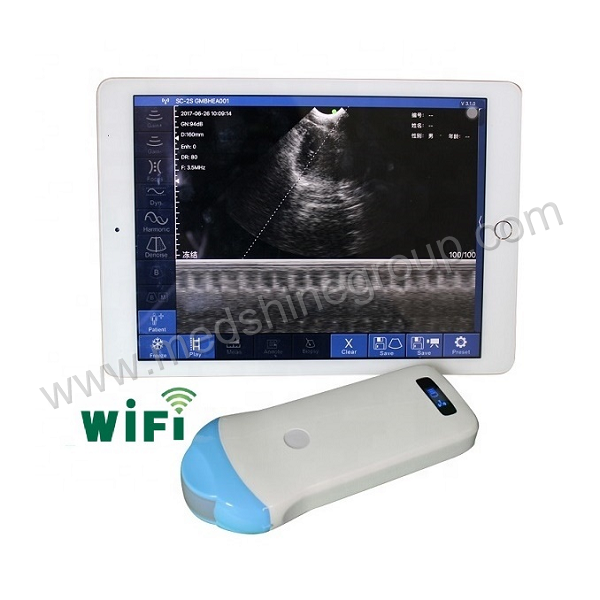

This wireless probe scanner with integrated ultrasound circuit boards inside, can wirless connect to the PC Tablet, SmartPhone that after installed ultrasound software, then realize the functions of a ultrasound scanner.

It is so small and smart, convenient for carry and operation.

Application Range:

In emergency clinical, hospital ward inspection,  community clinical and outdoor inspect, an easy carried & operated compact ultrasound such as M215 wireless probe is desired.

In addition, the wireless probe can be conveniently used in surgery without  fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.Also for powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.

Feature:

·Workable with Tablet or Smart  Phone

·Built-in and replaceable battery

·Advanced digital  imaging technology, clear image

· High cost-effective

·Wireless connectivity, easy to operate

·Small and  light , easy to carry

·Applicable in emergency, clinic, outdoor and vet inspection

·Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing

Specifications of convex probe:

-Scan mode: Electronic array

-Display mode: B, B/M

-Frequency：3.5MHz

-Depth: 100mm~200mm

-Measure: distance, area, obstetrics

-Battery last: 3 hours

-Dimension: 156mm×60mm×20mm

-Weight: 308 gram

-Wifi type: 802.11g/20MHz/2.4G/54Mbps

-Work OS: Apple iOS and Android

-Image frame rate: 12f/s.

Standard Configuration:

-Main Host(probe)  1 Unit

-Internal Battery and charger 1 Set
