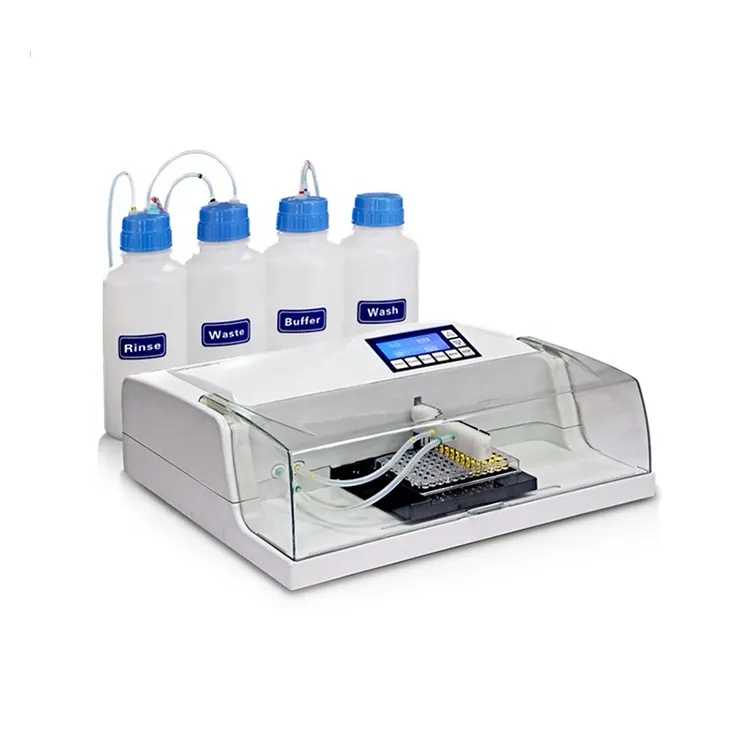

M118B ELISA Microplate Washer

M118B Microplate Washer

Main Features

* Large LCD display, menu designed for convenient use

* Whole plate washing or single strip washing

* 12-way and 8-way manifold included

* Low residual volume by two pipettes

* Complete bottom washing

* Shaking and dipping function

* Automatic monitoring of vacuum and pressure ,automatic rinse cycle

* Flat, V-bottom or U-bottom plate and strips washing

* Large memory to store up to 48 user programmed wash protocols

* Emergency stop available and liquid warning

Technical Specification

Input:　8 key membrane keyboard

Display : High brightness LCD display screen

Manifold: 8 pins and 12 pins

Wash Mode: Strip mode and plate mode

Wash strips: 1~12 adjustable

Applicable well: Flat, V-bottom or U-bottom

Washing times: 0~99 times adjustable

Dipping time: 0~3600s adjustable

Shaking time: 0~600s adjustable

Residual volume:≤1μL/well

Liquid volume: 50~3000ul/well

Sipping time: 0.1~9.9s

Storage Capacity:More than 100 user defined wash board procedures

Power supply: 198~242V, 49~51Hz

Dimensions: 448(L)×382(W)×163(H)mm

Net weight: 8kg

Operating Environment :Temperature 5℃--40℃,Max humidity 80%
