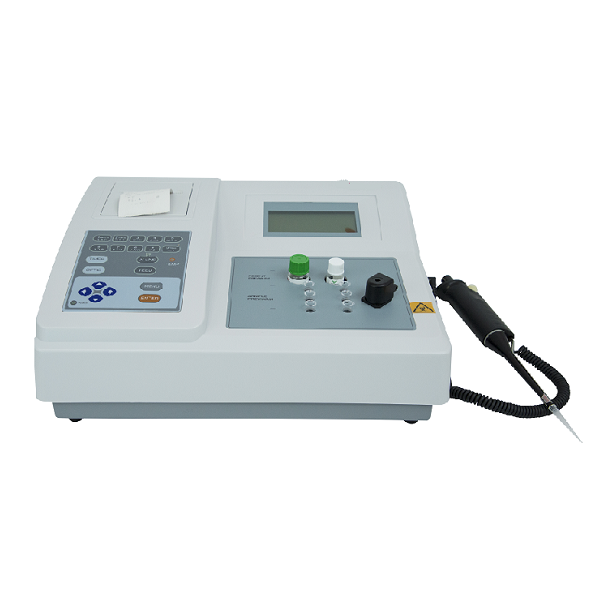

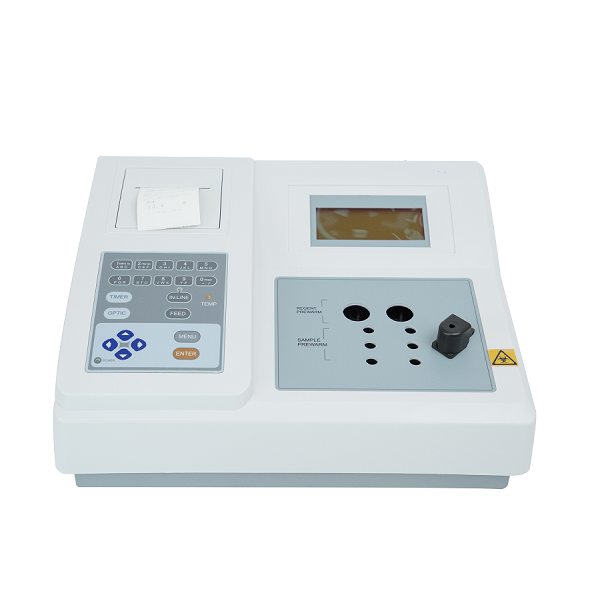

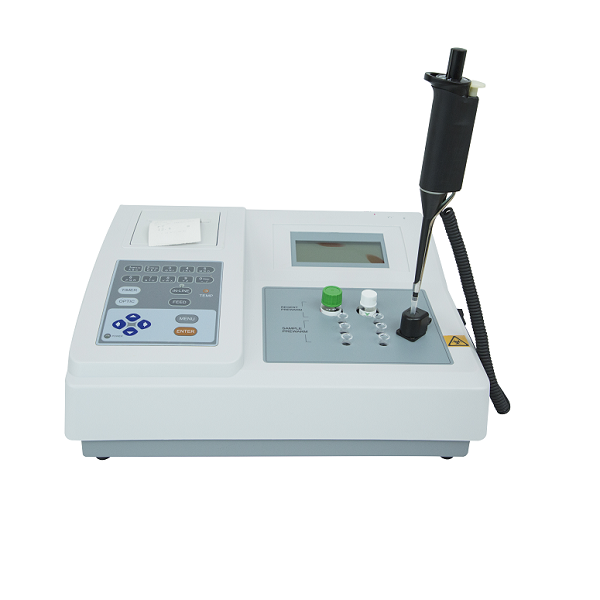

M108 Coagulation analyzer

M108 Coagulation Analyzer

● Advanced scattered light principle and percentage analysis ensure accurate results.

● Low reagent consumption less than 20uL, open reagent.

● Special testing cup location system, adding sample bracket

● Optional PT Derived method for testing fibrinogen, decease the dosage of reagent

● Advanced optical light matching system ensure precision result.

● 240* 128 large LCD display.

● Memory for 10.000 testing result

● Internal thermal-sensitive printer

● Electronically-linked pipette optional.

● Perform all routine tests such as PT. APTT. TT Fibrinogen and clotting factors

● RS232 interface, PC connecting for management software

Specification:

Testing channels: 1 channel

Sample pre-warming position:6 positions

reagent pre-warming position: 2 positions

Software timer: 1

Test wavelength: 470nm

Sample consume:  20uL-40ul

Reagent consume: 20uL-40uL

Temp control precision:37±0.3℃

Repeatability: Cv < 2%

Coincidence indicator:≤3%

Momery: 10000 test result

Notation of Result: S, %, PTR, INR, g/L

Operation language:English

Power supply: 220VAC±15% 50-60Hz

Dimensions:370mm(L)×370mm(W)×120mm(H)

Temperature: 15℃-30℃ wet≤90%

Weight: 8Kg
