Digital C-arm System

High-Frequency Mobile Digital C-arm System (Flat Panel Detector)

Brand: Medshine
Model No.: M315
Certificate: CE,ISO
Warranty:18 months
Product description: Medical X-ray equipment M305 is combined with high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc. Thi
INQUIRY

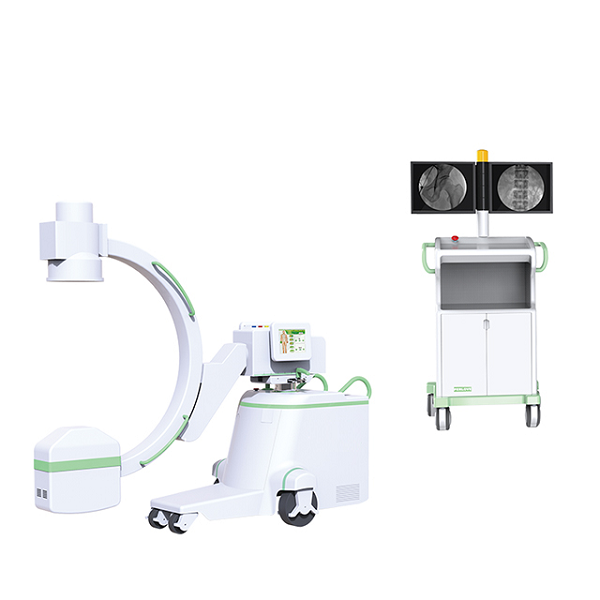

M315 High-Frequency Mobile Digital C-arm System

(Flat Panel Detector)

Features:

1.Full view FPD, outstanding image quality and large field of view coverage even during image rotation.

2.Build-in advanced image automatic optimum processing and enhancing module realize the sharp clinical image.

3.Human graphic LCD touch screen with accurate APR parameters setting realizes convenient operation.

4.Intelligent digital pulse, sharp image at very low dose

Product Parameters

Item	Specification
Power Output	25kW
Inverter Frequency	60kHz
Continuous Fluoroscopy Mode(manual & automatic)	Tube Voltage: 40kV~125kV
Continuous Fluoroscopy Mode(manual & automatic)	Tube Current: 0.3mA~5mA
Enhance Fluoroscopy	Tube Voltage: 40kV~125kV
Enhance Fluoroscopy	Tube Current: 0.3mA~10mA
Pulse Fluoroscopy	Tube Voltage: 40kV~125kV
Pulse Fluoroscopy	Tube Current: 0.3mA~100mA
Photography Mode	Tube Voltage: 40kV~125kV
Photography Mode	Tube Current: 70~200mA
